Marca: VAKOLE

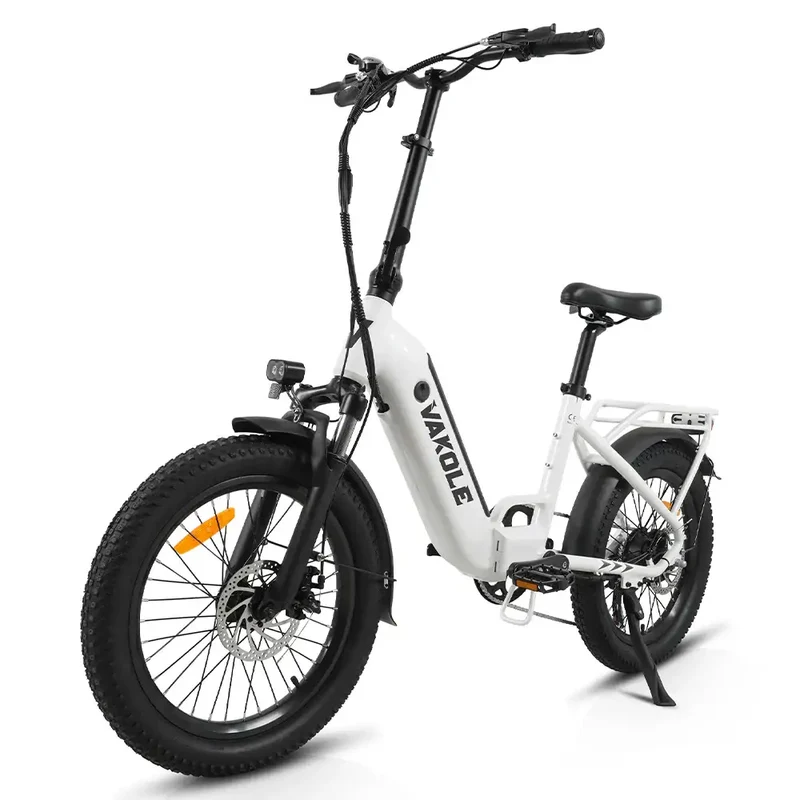

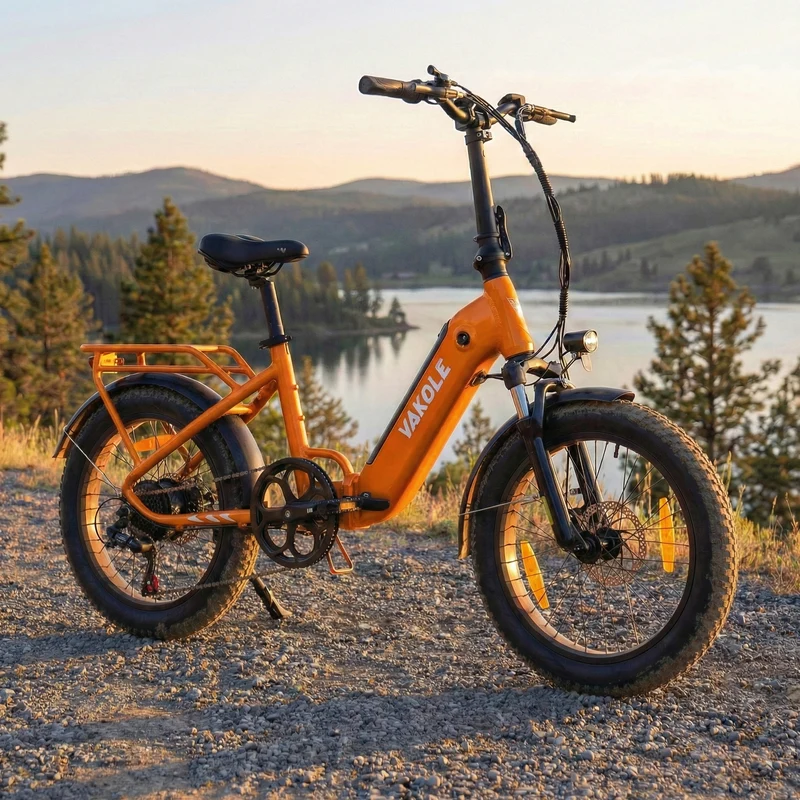

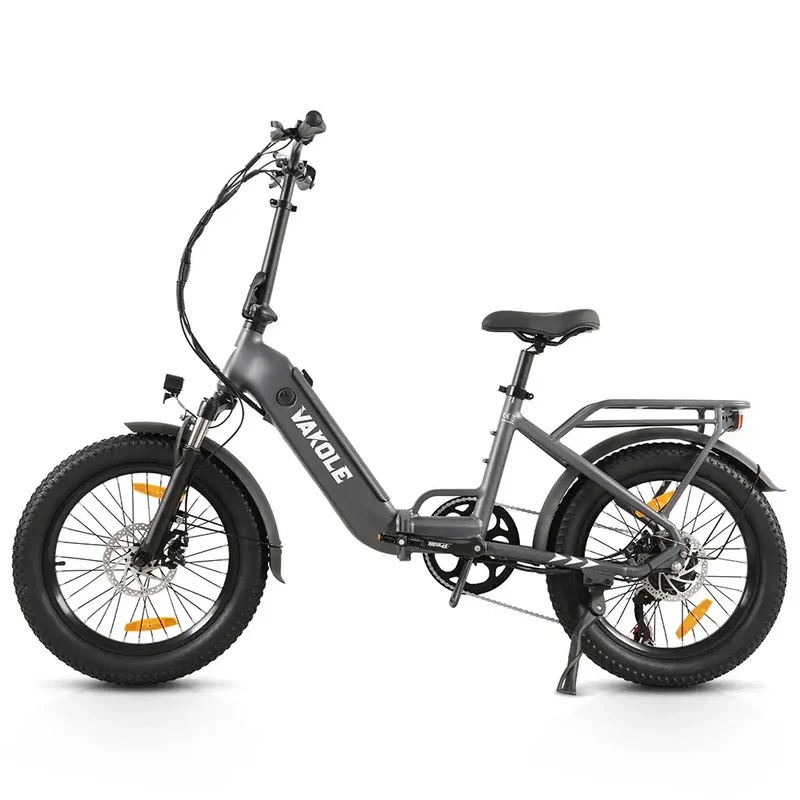

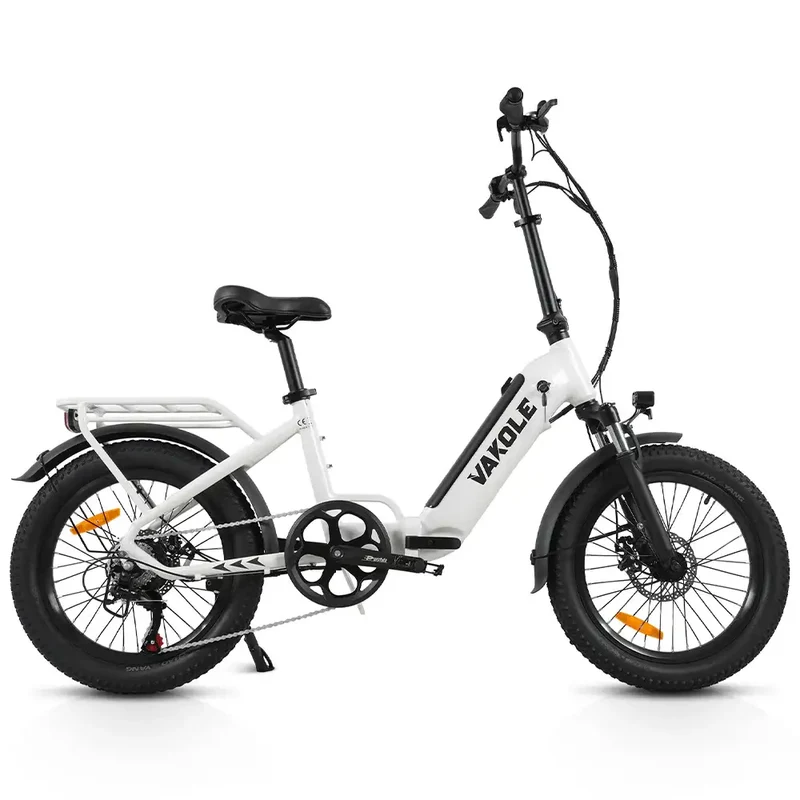

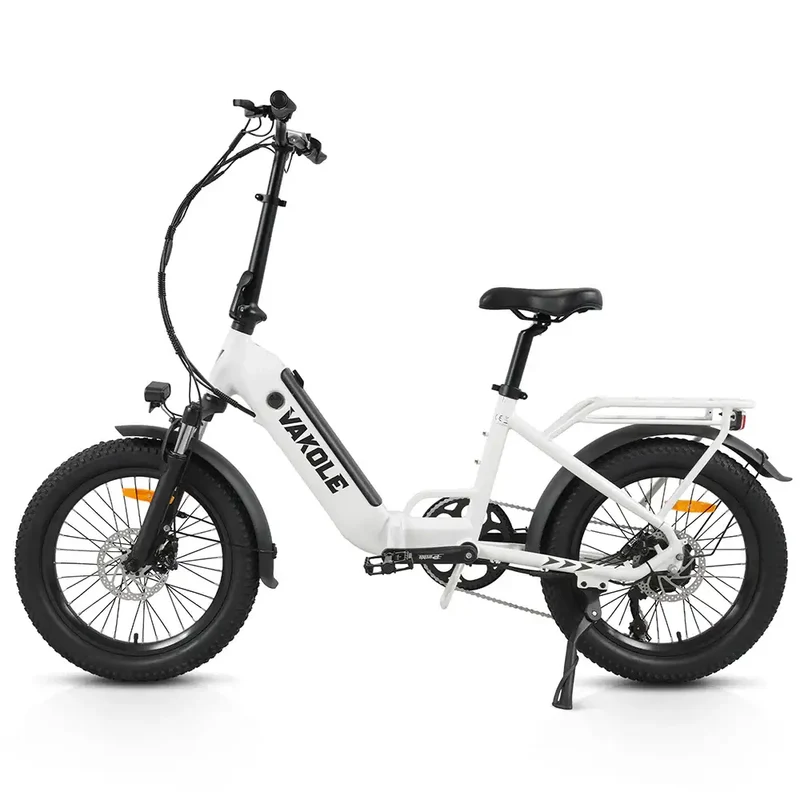

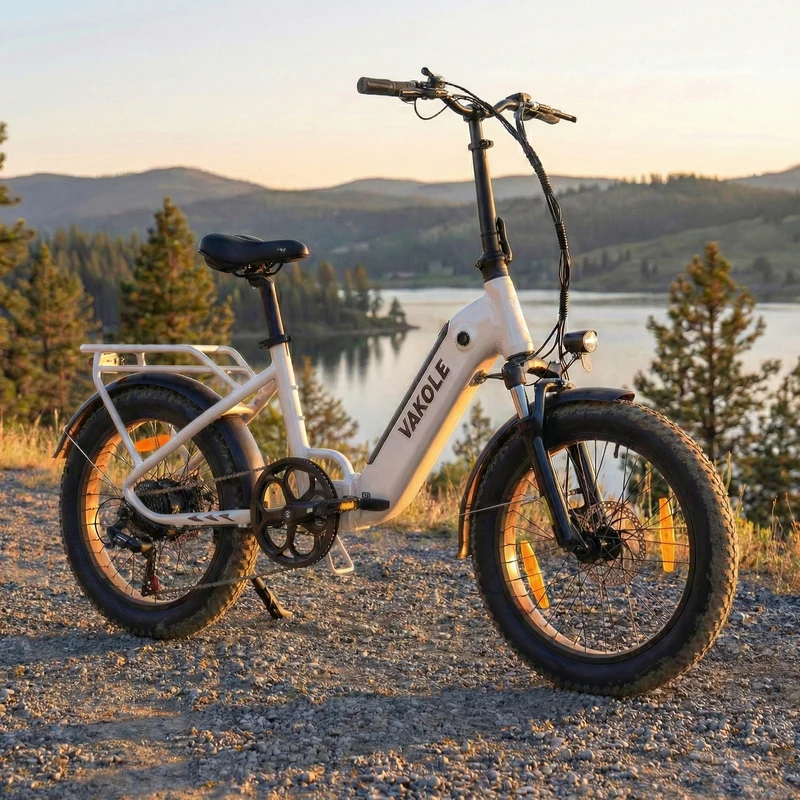

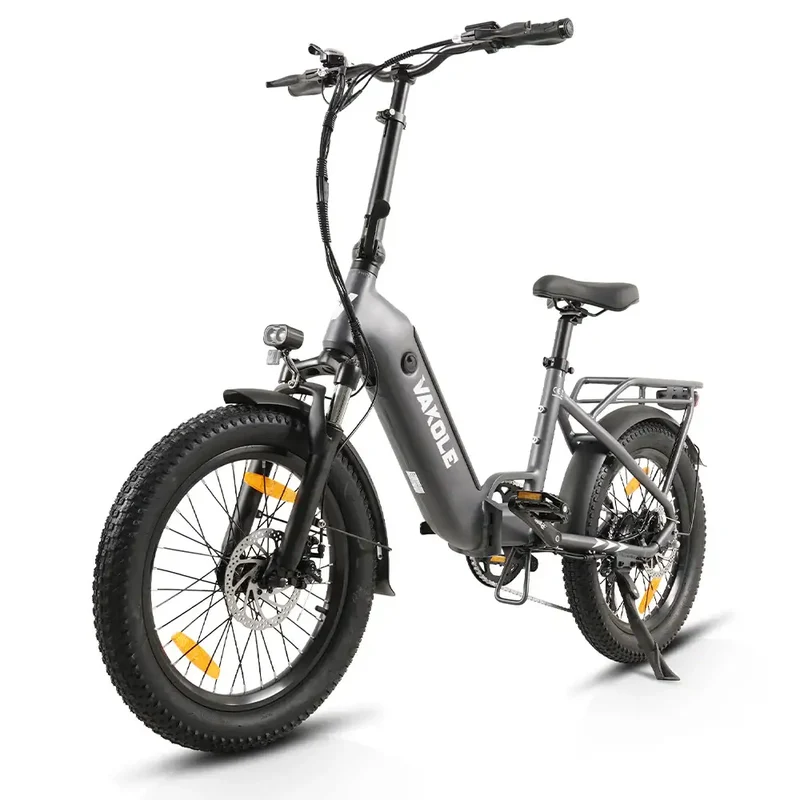

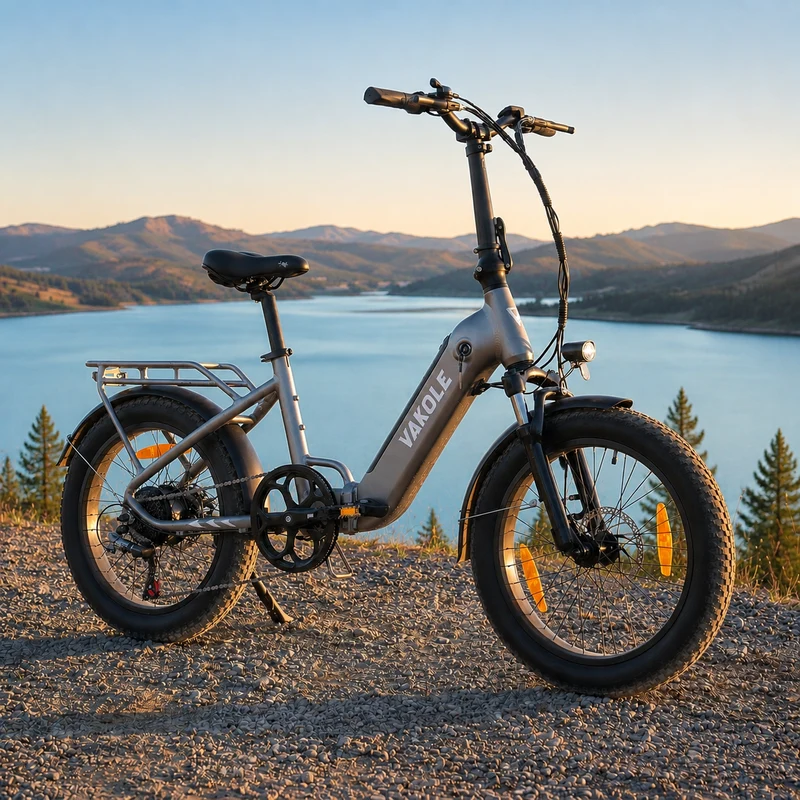

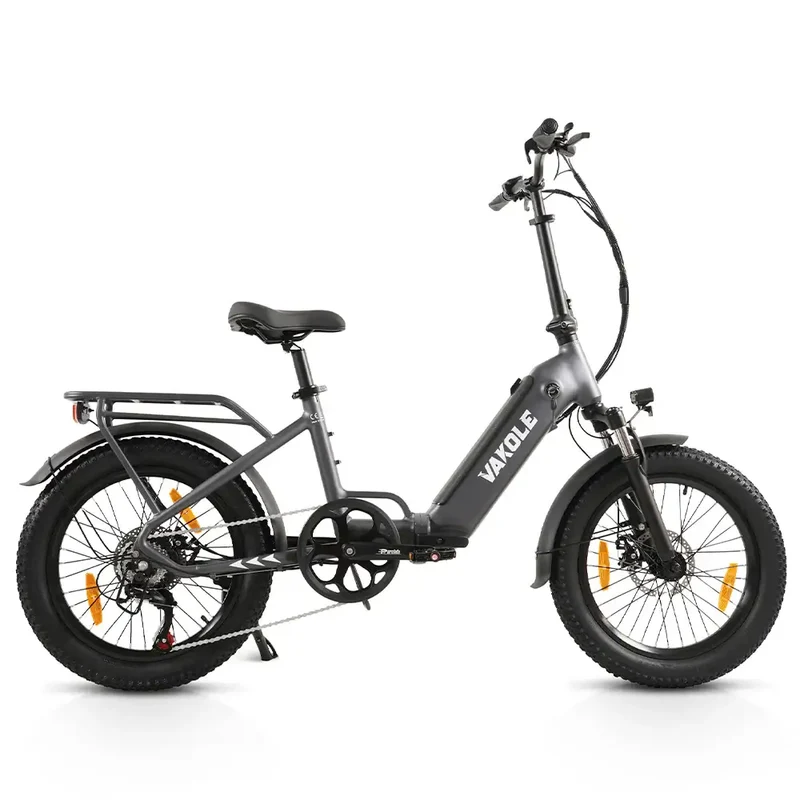

Vakole VT4 20" Foldable Compact Step-through E-bike (468Wh)
Descripción
Main Features
1. 250W Brushless Motor ( Top Speed 25km/h )
Light and compact yet powerful enough. 250W brushless motor with 50 N.M maximum torque produce 25km/h maximum speed. The rear-hub motor is quiet and responsive, offering enough slope-climbing capacity for most urban roads.
2. Removable 36V 13Ah (468Wh) Battery
This elegant and removable battery allows you to charge it at home or in the office. The battery is securely locked and firmly attached to the frame. A great battery life in assisted mode, lasting up to 75 km on a single charge.

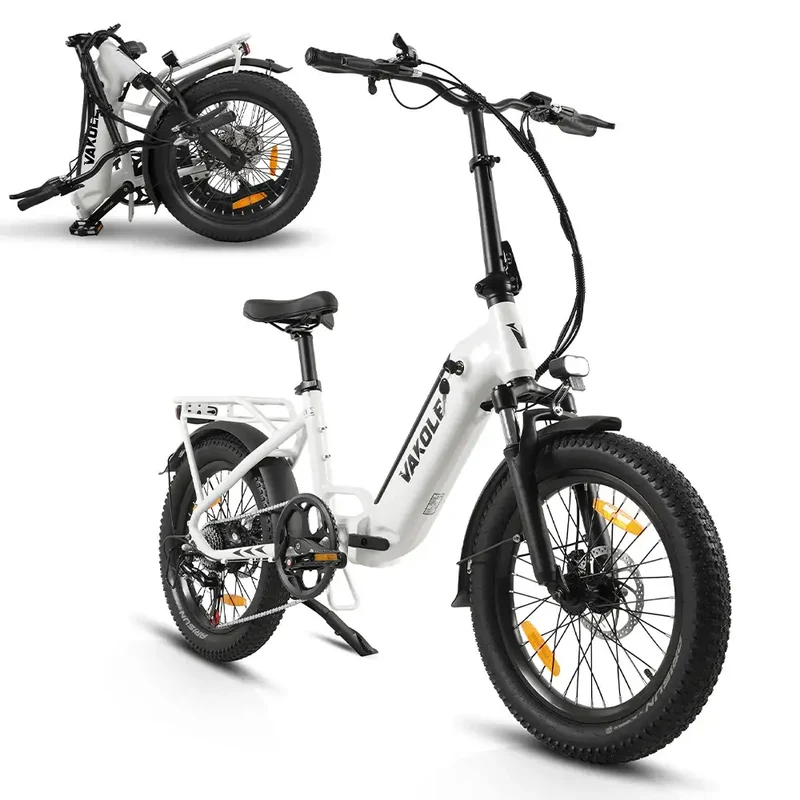

3. Foldable Lightweight Step-through Frame

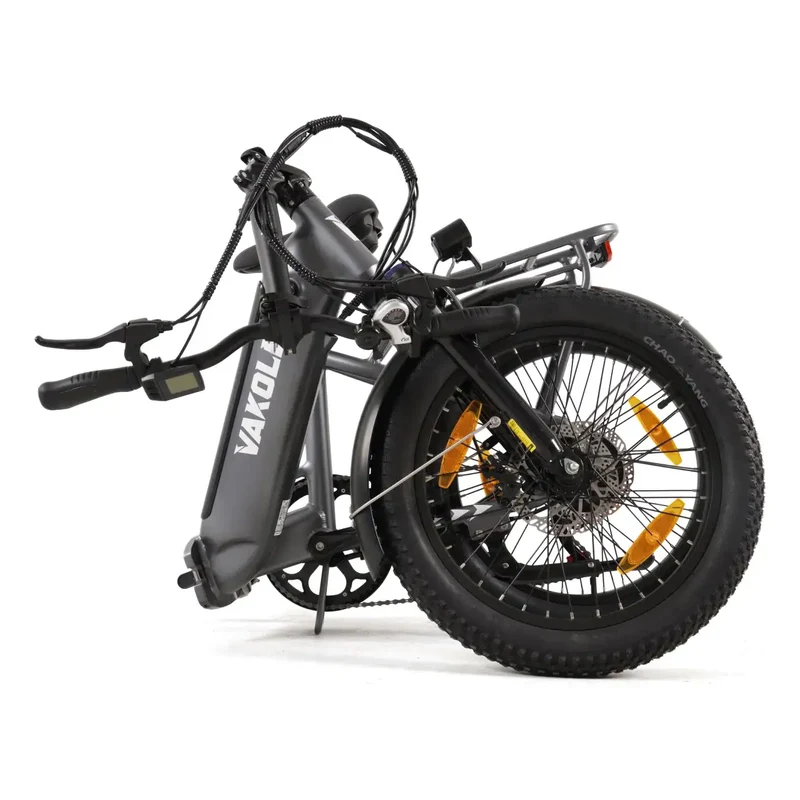

The aluminum step-thru frame, opening up the roads for those who are prevented from hopping on a high frame and those who want their own styles. Folding your bike into a compact size is especially easy and straightforward, especially when carried by two people. The entire bike can be quickly folded into a compact size in just three steps. This makes transporting the bike in a camper van or on a train even easier.

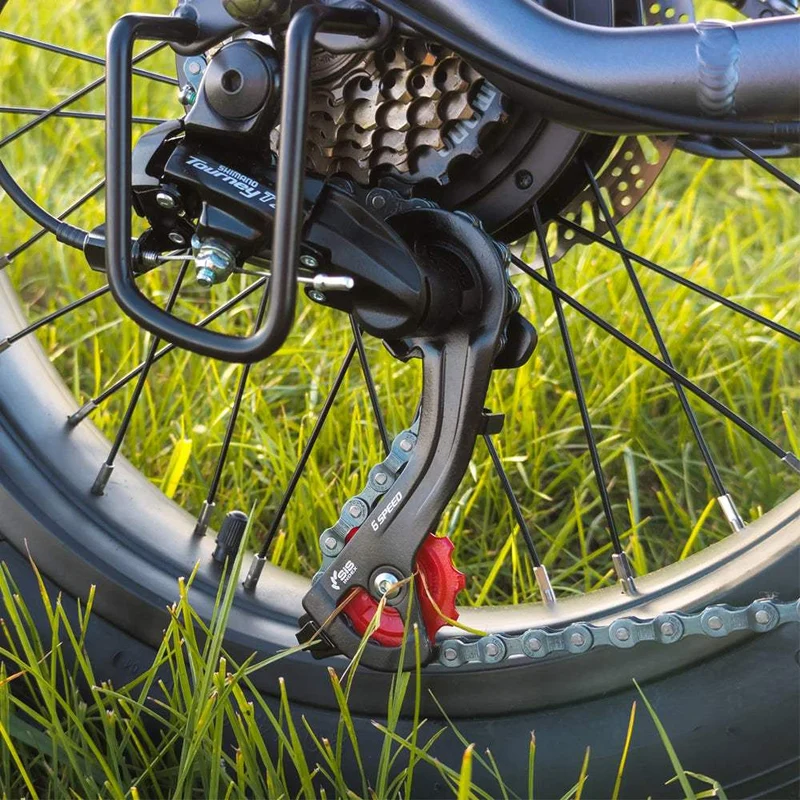

4. Shimano 7 Speed Transmission
As we know, the 7-speed Shimano system is the standard transmission mechanism mentioned by many riders. Riders can adjust the bike's gear according to personal preference to adapt to different road conditions, such as tilt, bumps, or other difficulties. Most importantly, the 7-speed Shimano bike can travel on different terrains. The lower gears make it easier to pedal, and the higher gears make it easier to move downhill.

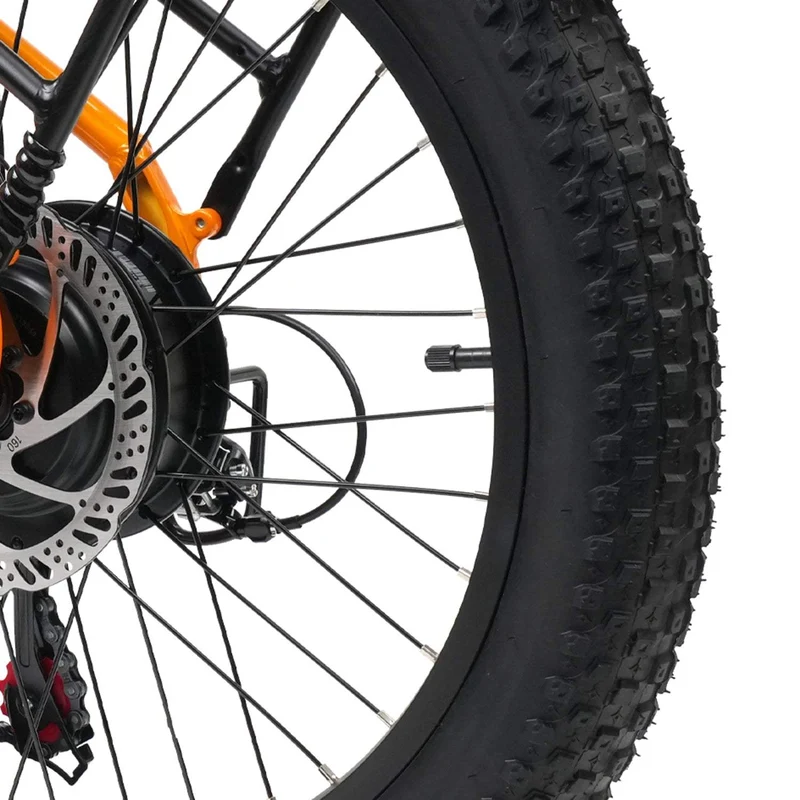

5. 20 x 3.0 inches CHAOYANG Tires for All Weather

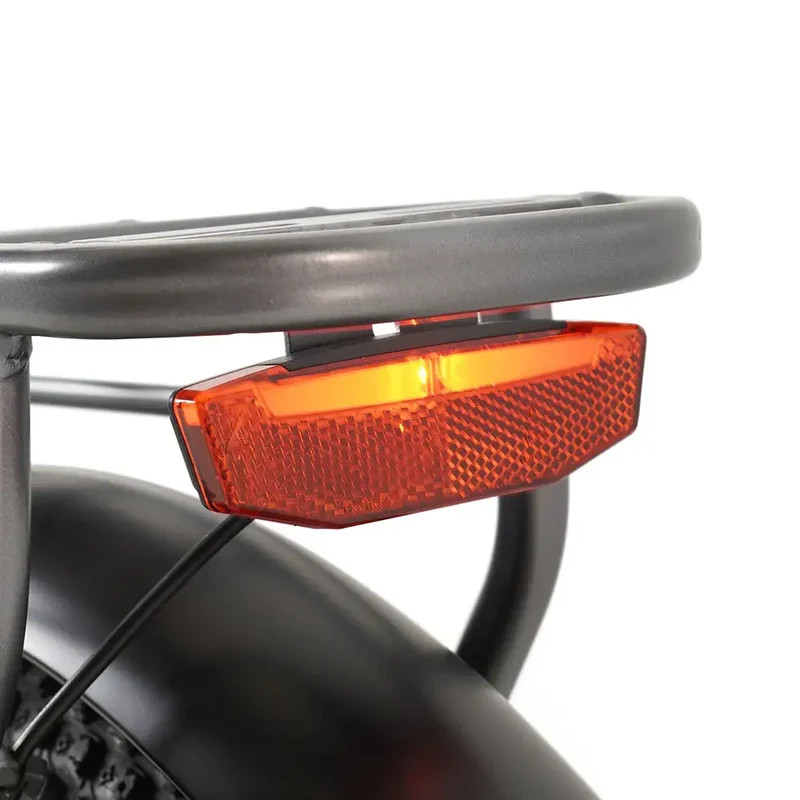

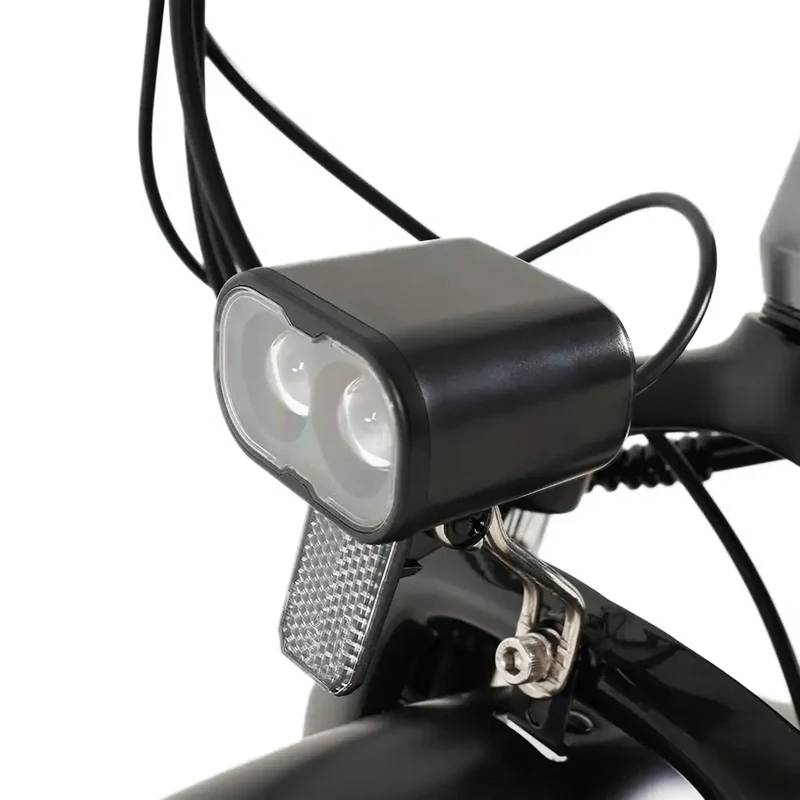

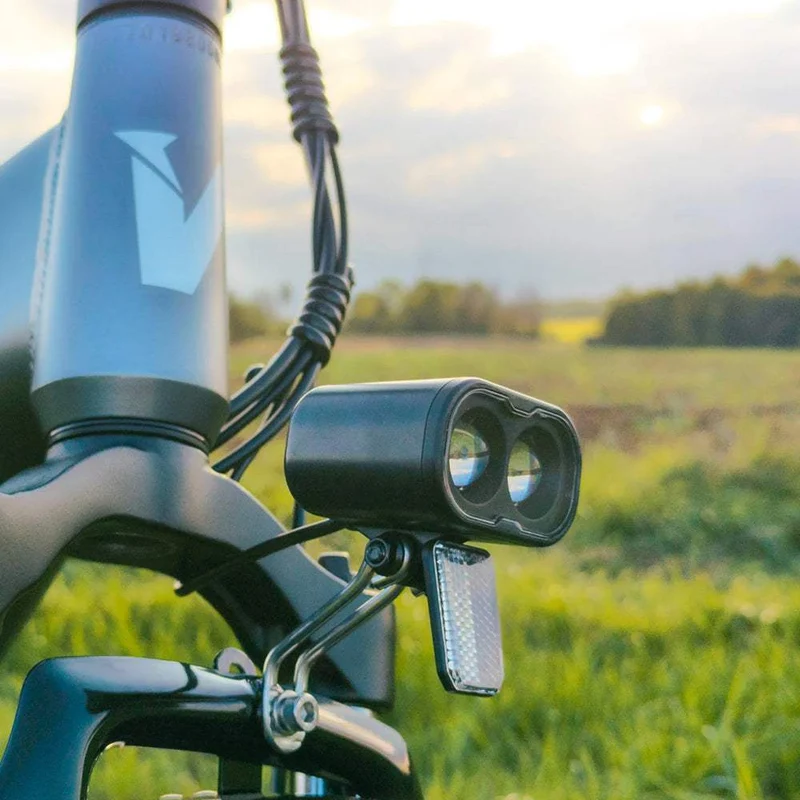

These 3.0-inch tires are perfect for sunny, rainy, and even snowy days! Equipped with sturdy fenders and bright front and rear lights, this bike is built for any climate and weather. Take this bike with you all year round.
Size & Fit Guide
Find the perfect fit for your ride with our detailed frame geometry and dimensions.
Recommended Height 160 – 210 cm Folding Size 87 x 44 x 72 cm Saddle Height Range 79 – 100 cmRider Height Compatibility
Designed with high adjustability for both seat and handlebars, this bike comfortably accommodates riders between 160 cm and 210 cm (approx. 5'3" – 6'11").

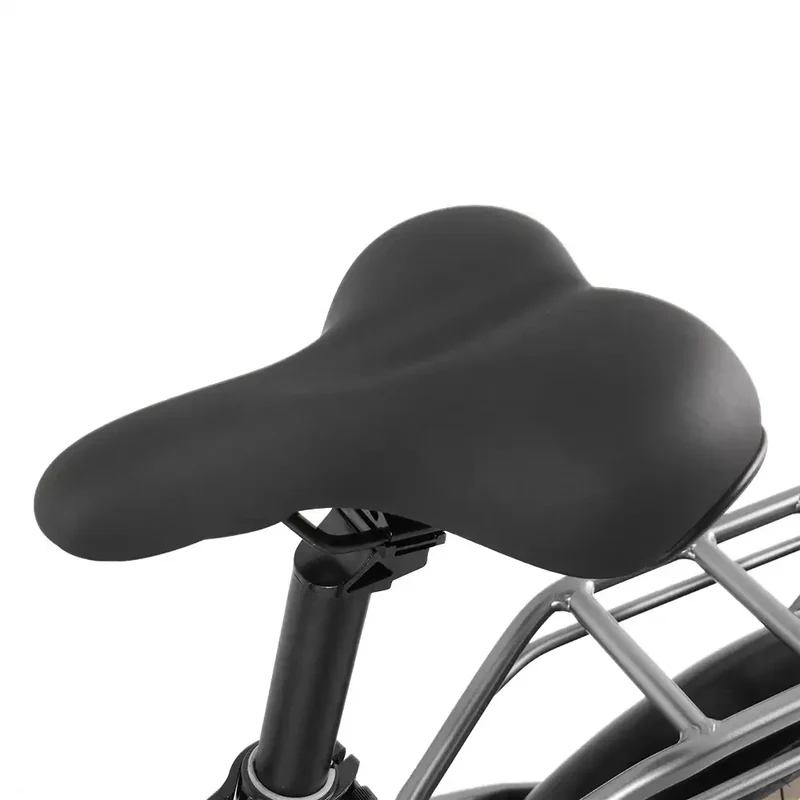

- Adjustable Seat Height: 79 cm to 100 cm for ideal leg extension.
- Adjustable Handlebar Height: 110 cm to 132 cm for customizable riding comfort.
- Compact Folding: Easily folds down to 87 x 44 x 72 cm for easy storage and transportation.

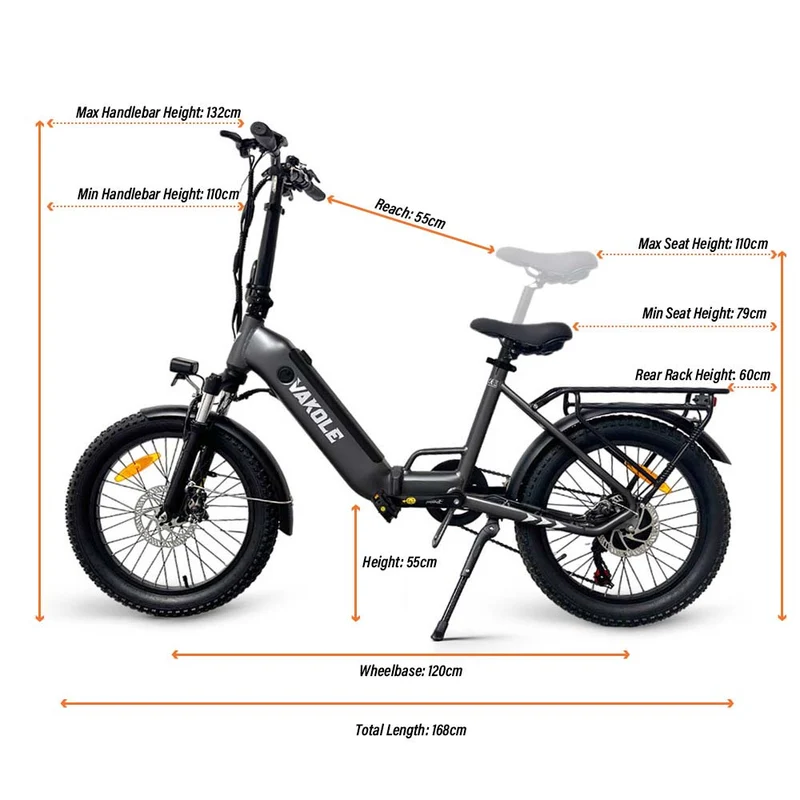

Dimensions & Geometry
| Specification | Measurement |
|---|---|
| Suitable Rider Height | 160 – 210 cm |
| Folding Size (L x W x H) | 87 x 44 x 72 cm |
| Total Length | 168 cm |
| Wheelbase | 120 cm |
| Reach | 55 cm |
| Stand-over Height | 55 cm |

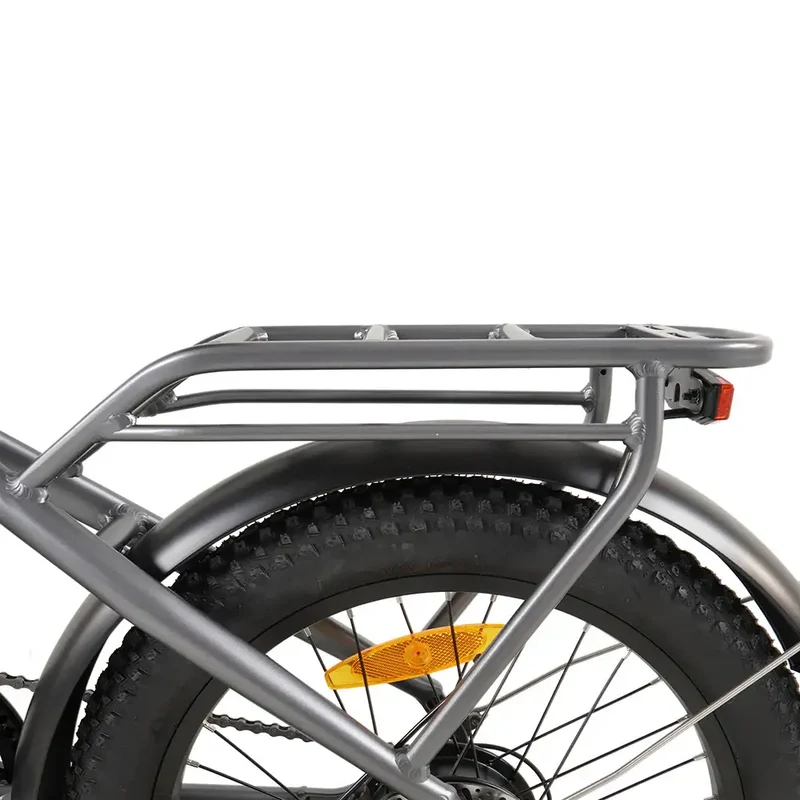

| Rear Rack Height | 60 cm |
| Seat Height Range | 79 cm – 100 cm |
| Handlebar Height Range | 110 cm – 132 cm |
Specifications
| Brand | Vakole |
| Model | VT4 |
| Frame Material | Aluminum Alloy |
| Battery | 13Ah (468Wh) |
| Battery Voltage | 36V |
| Charger Voltage | 42V/2A |
| Charger Plug Type | EU plug |
| Charging Time | 4-6H |
| Motor Wattage | 250W |
| Torque | 50 N.m |

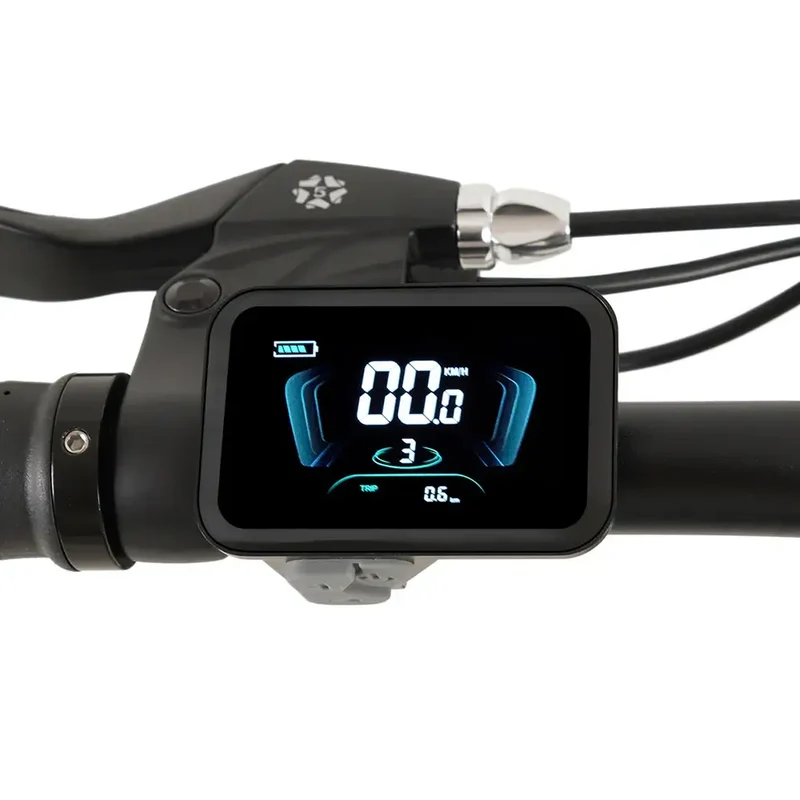

| Speed Level | 5 Level |
| Mechanical Shift | Shimano Tourney 7 speed |
| Riding Modes | 1. Electric-only mode |
| 2. Cycling mode (without power) | |
| 3. Pedal-assist mode | |
| Tire | 20*3.0" |

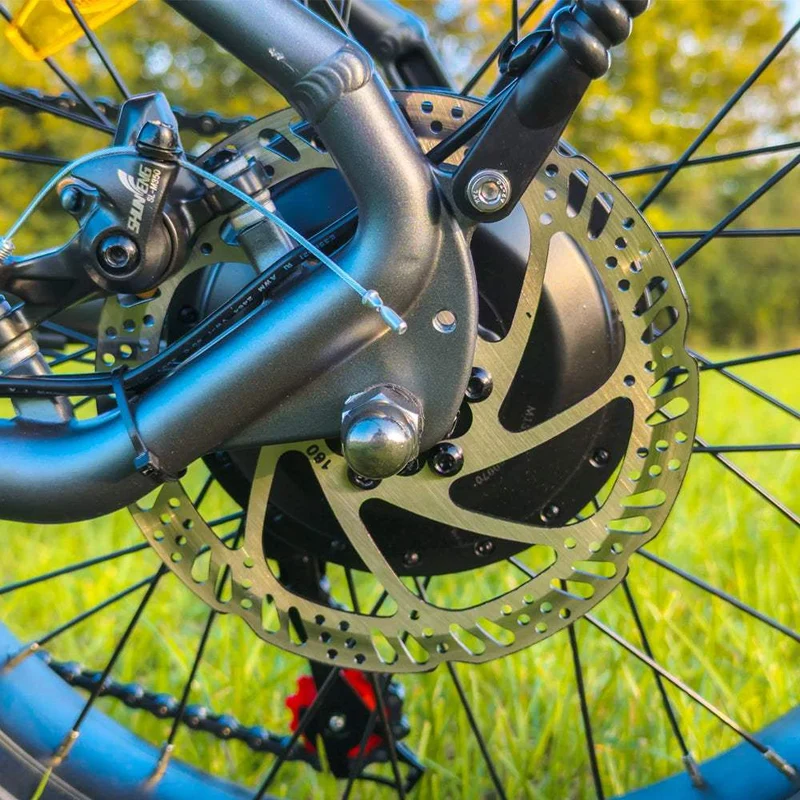

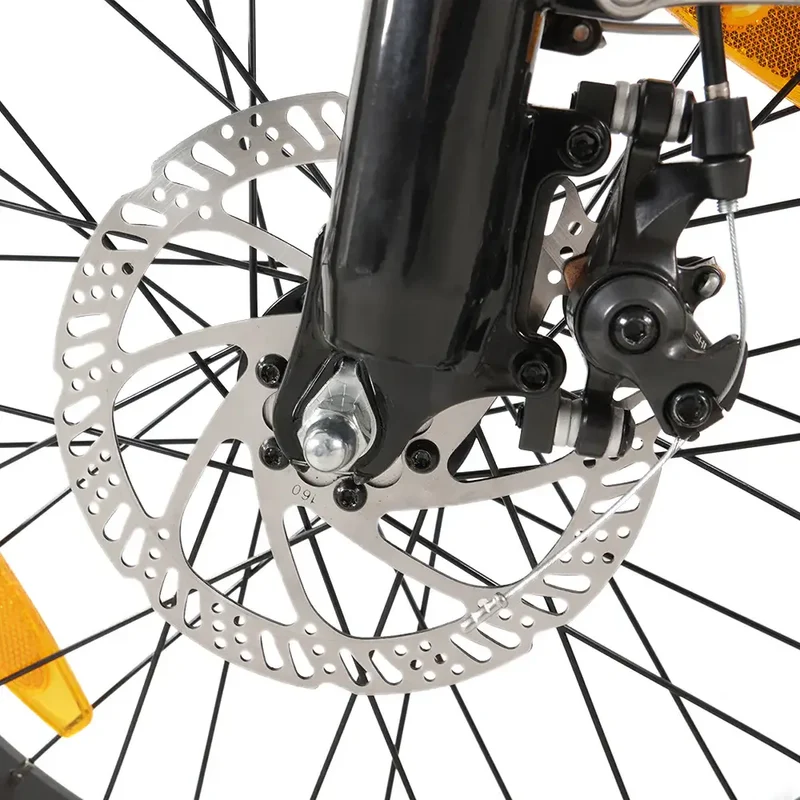

| Brake | Mechanical Disc brake |

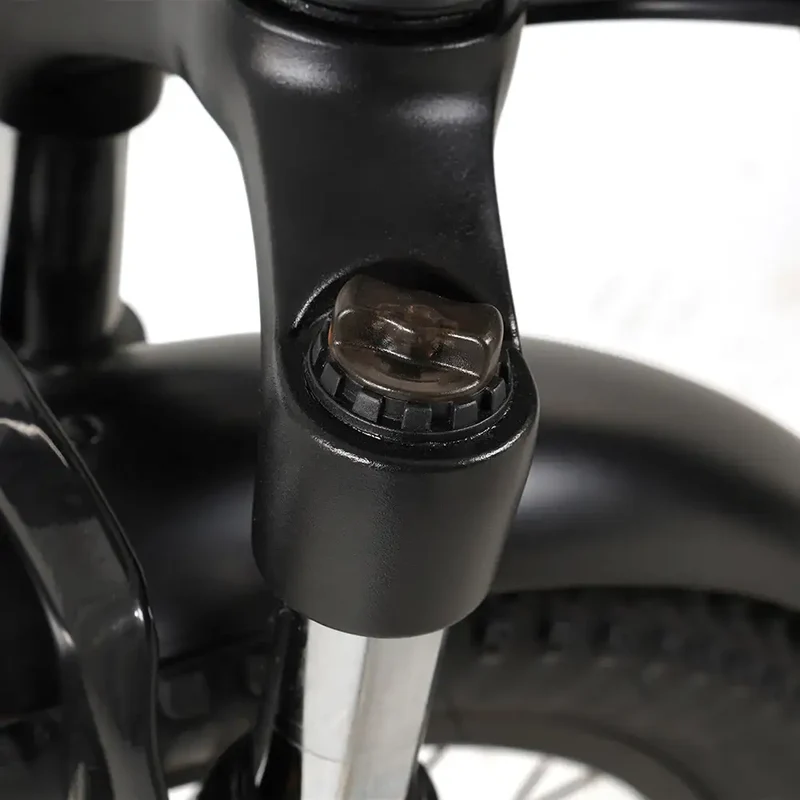

| Shock Absorber | Lockable front fork suspension |
| Gradeability | 15-25° |
| Max Speed | 25km/h |
| Mileage of Pure Electric | 45-55KM |
| Mileage of Assistance | 60-75KM |
| Maximum Load | 120KG |
| Rear Seat Bracket Maximum Load | 25KG |
| Suitable Height | 160-210cm |
| Mudguard | Front & rear fender |
| Waterproof Level | IP54 |
| Net Weight of the Bike | 25.7KG |
| Weight of Battery | 3.5KG |
| Gross Weight | 29.7KG |
| Product Size | 170*60*102cm |
| Folding Size | 87*44*72cm |
| Package Size | 146*25*70cm |
User Manual:
| English | German |
