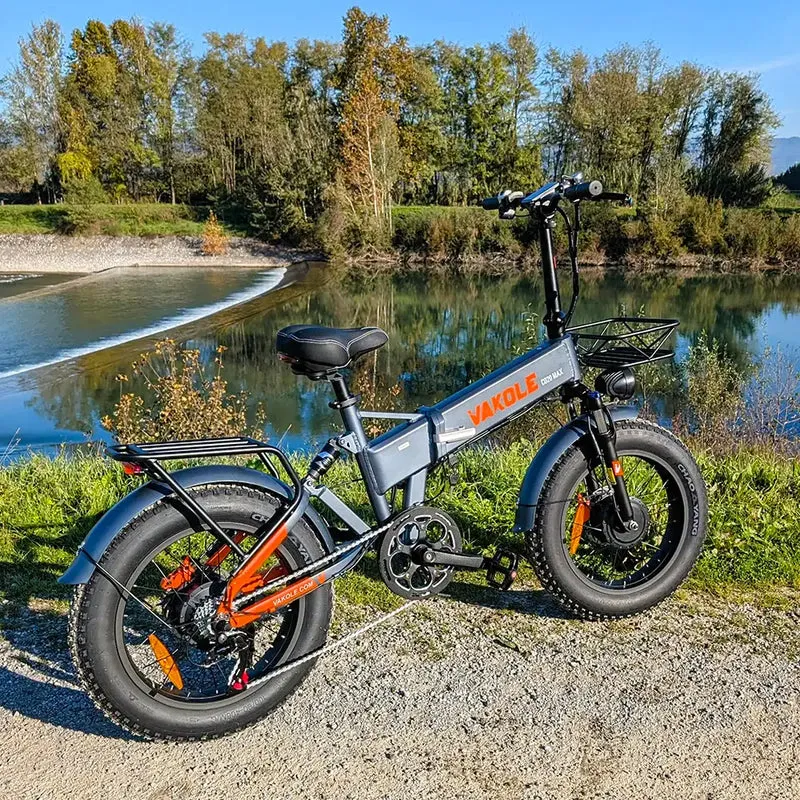

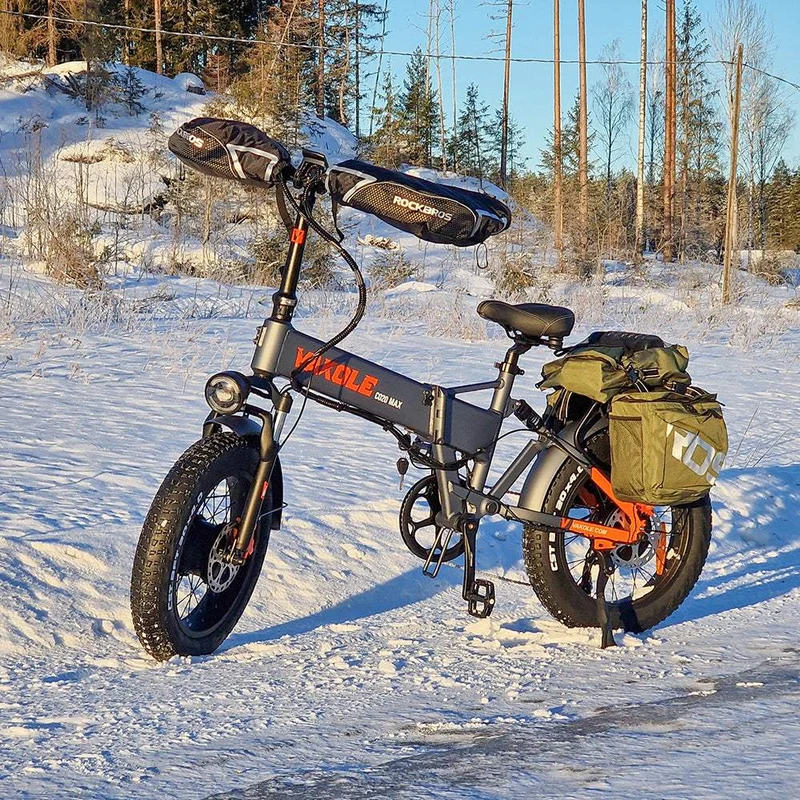

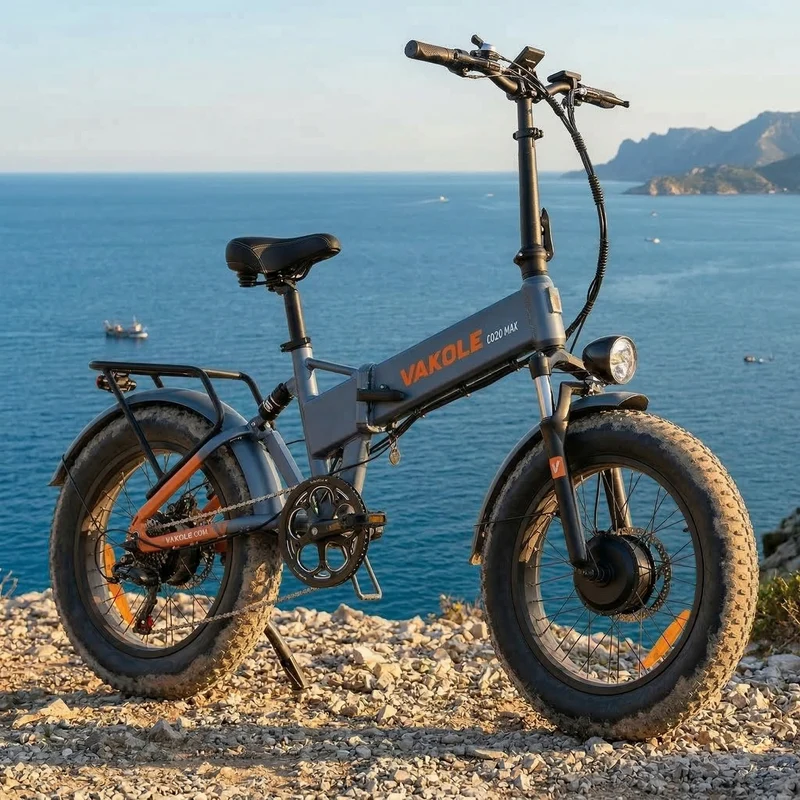

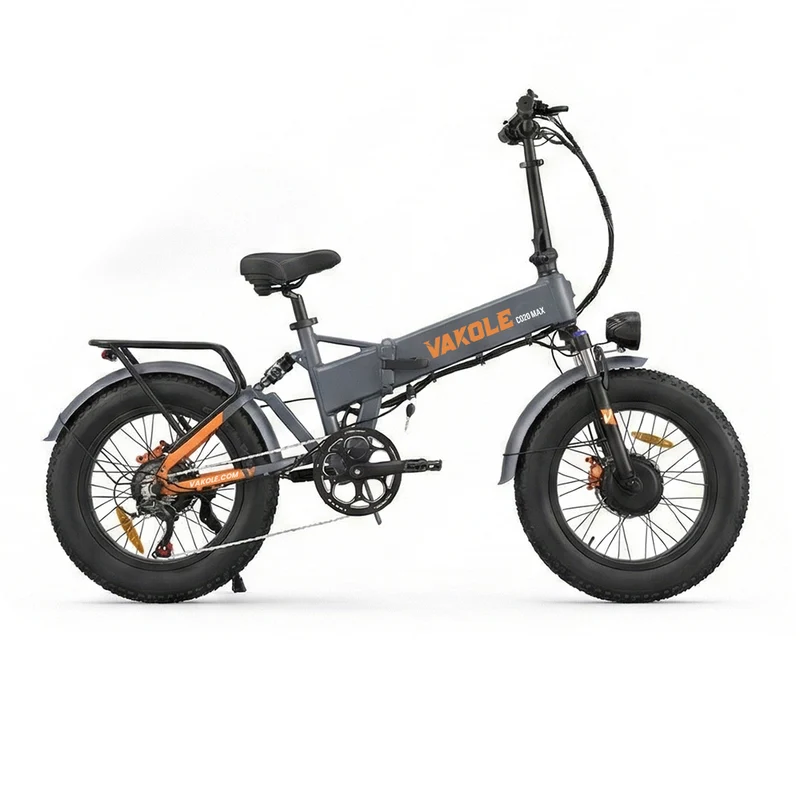

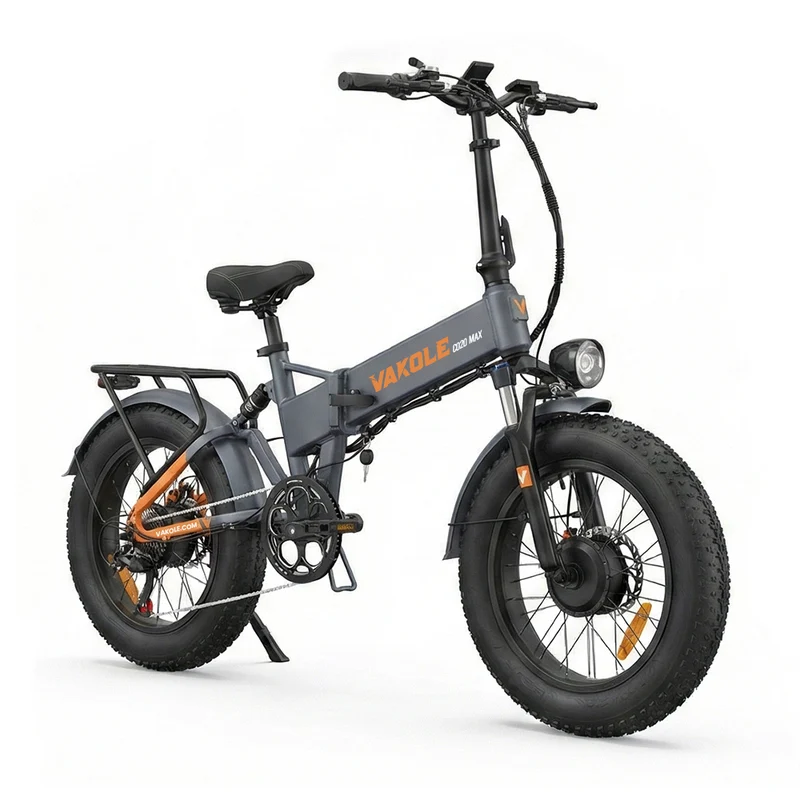

Vakole CO20 MAX Dual Motor 20" Folding 960Wh Fat Bike

Vakole CO20 Max has been upgraded to the Torque Sensor and Chaoyang Tire from April 2024

Main Features

1. Dual-motor Electric Bike (Top speed: 25km/h)

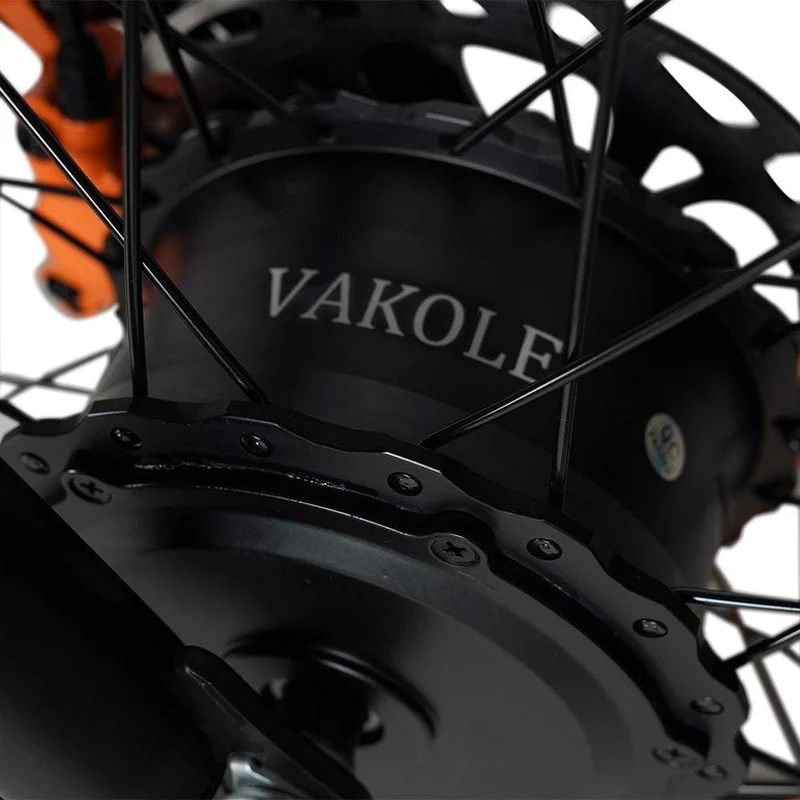

A dual Brushless Motor (peak power 750w*2) has high performance, more power, and faster acceleration. The rear and front hub motors offer unmatched performance on climbs, deep snow, and even mud.

2. 48V 20Ah Removable Battery (960Wh LG Cell Units)
Long Range: 80-120 km by assist mode, 60-80 km by pure electric mode. Its simple design and compact size make the bicycle beautiful and generous. Also, it is easy to install and disassemble as well as convenient transportation and safe use.

3. 5 Levels Pedal Assist & Shimano 7 Gears

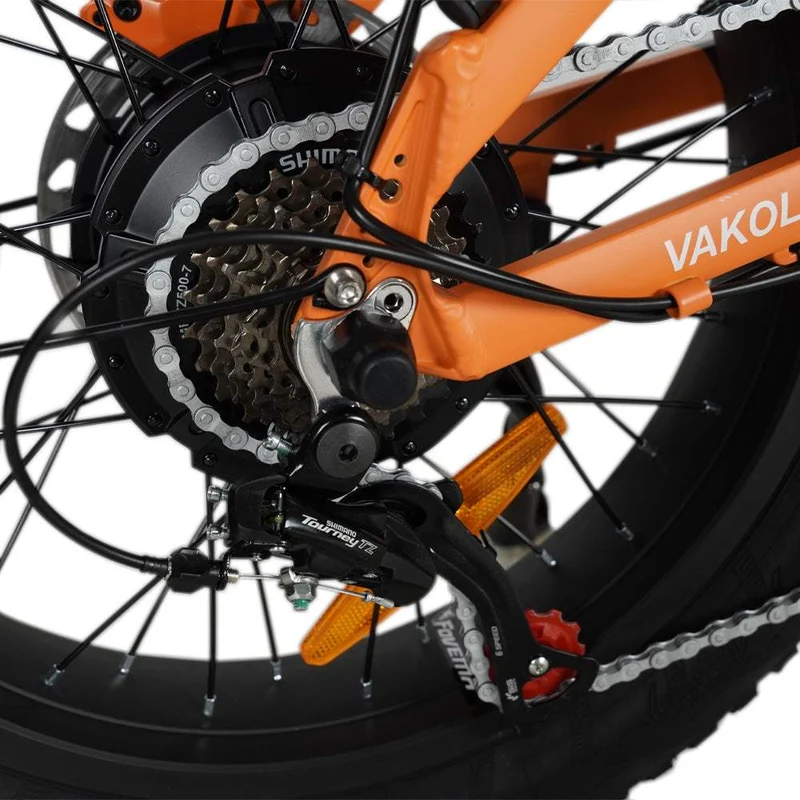

Shimano Tourney TZ 1x7 speed derailleur can enable the bike travel on different terrains. Riders can adjust the bike’s gear according to personal preference to adapt to different road conditions, such as tilt, bumps, or other difficulties. The lower gears make it easier to pedal, and the higher gears make it easier to move downhill.

4. Torque Sensor
Enhanced sensor technology: the upgraded Torque sensors feature advanced technology, offering greater accuracy and precision compared to speed sensors. They measure the force applied by the rider to the pedals and adjust the motor accordingly, resulting in a more natural and responsive riding experience. Improved efficiency and smoothness: while the increase in cruising range may not be significant, torque sensors deliver a smoother and more efficient power delivery system, enhancing overall performance and ride quality.

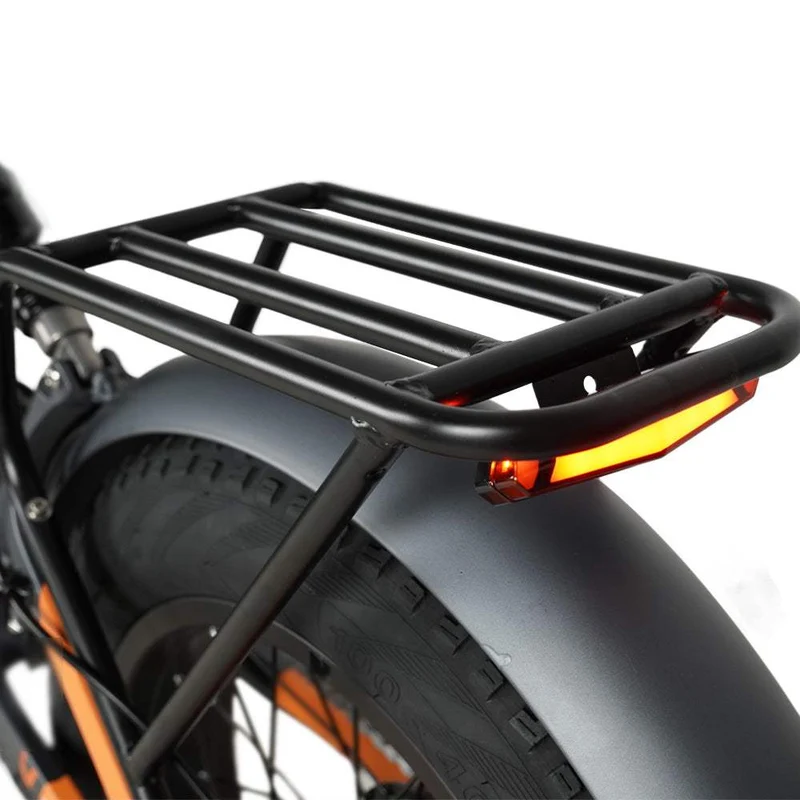

5. UPGRADED Light System and Turning Signals

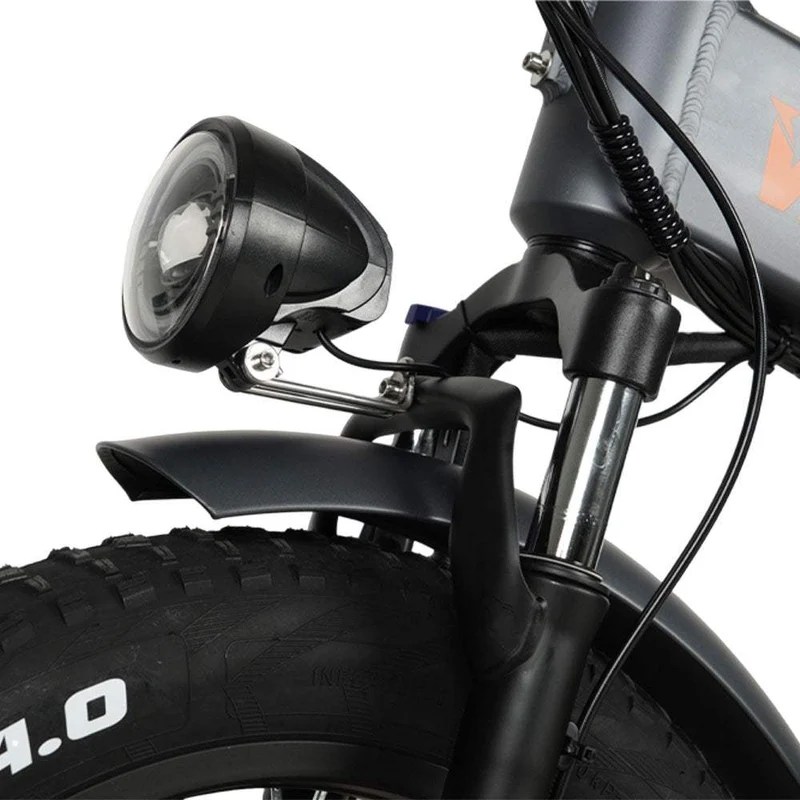

Big beam head light, under seat backlight, tail light and turning signals. These lights help you ride safely at night.

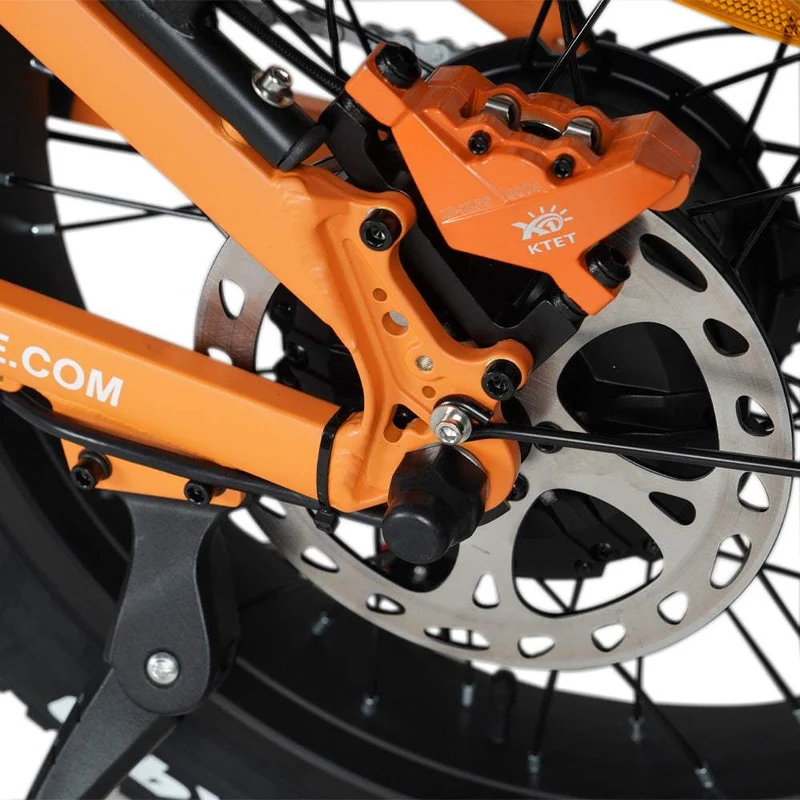

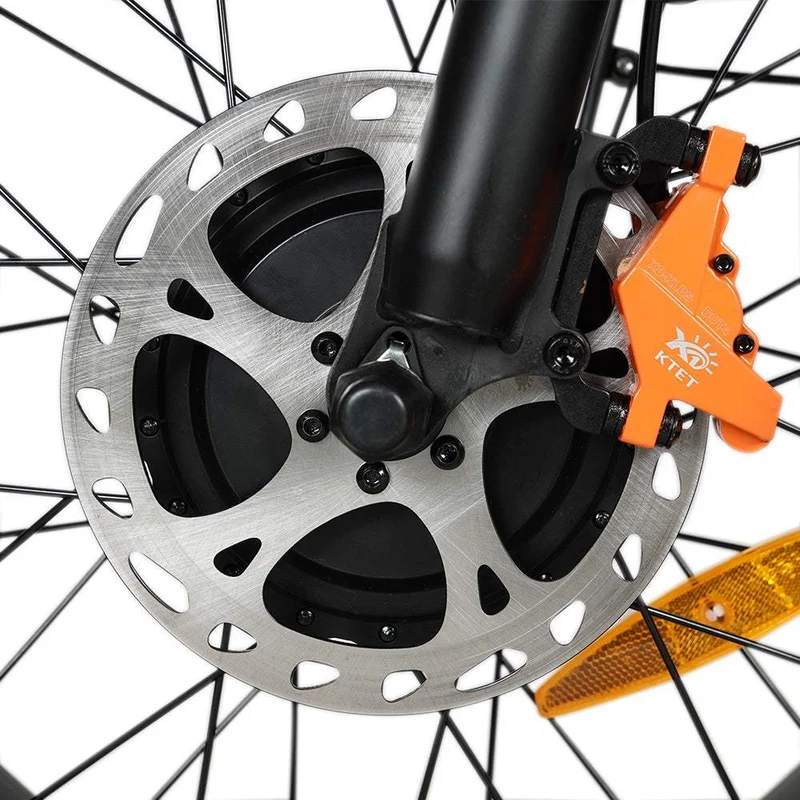

6. KTET Hydraulic Oil Disc Brakes
Hydraulic disc brakes use a sealed fluid system to transfer the braking force from the lever to the caliper.
√ More likely to last longer
√ Less maintenance
√ More brake-stopping power

7. Lockable Suspension Fork
The high-strength shock absorber front fork allows you to be more relaxed and comfortable when riding, and no longer afraid of bumps. Meanwhile, the lock switch can be manually locked or opened depending on riding conditions. The separate fork-shaped bridge design makes the outer tube of the front fork stronger and effectively prevents dust pollution during riding.

8. 20 x 4.0" CHAOYANG Fat Tires
Chaoyang tires are recognized for their strong road grip, robust sidewalls, high safety standards, and excellent performance across various terrains. The deep and wide tread design provides good grip and stability. Make it perfect for driving on snow, sand, mountain, and rugged roads, and even hunting.

9. Front and Rear Shock Absorber
CO20 MAX has front and rear shock absorbers. The full shockproof system keeps your tires stay in contact with the ground when riding on rugged ground, and bumps. Meanwhile, it will improve traction, instead of rebounding from bumps and losing grip, and reducing the risk of making mistakes on rough terrain for long distances riding with smoother riding.

Specifications

Model	VAKOLE CO20 MAX

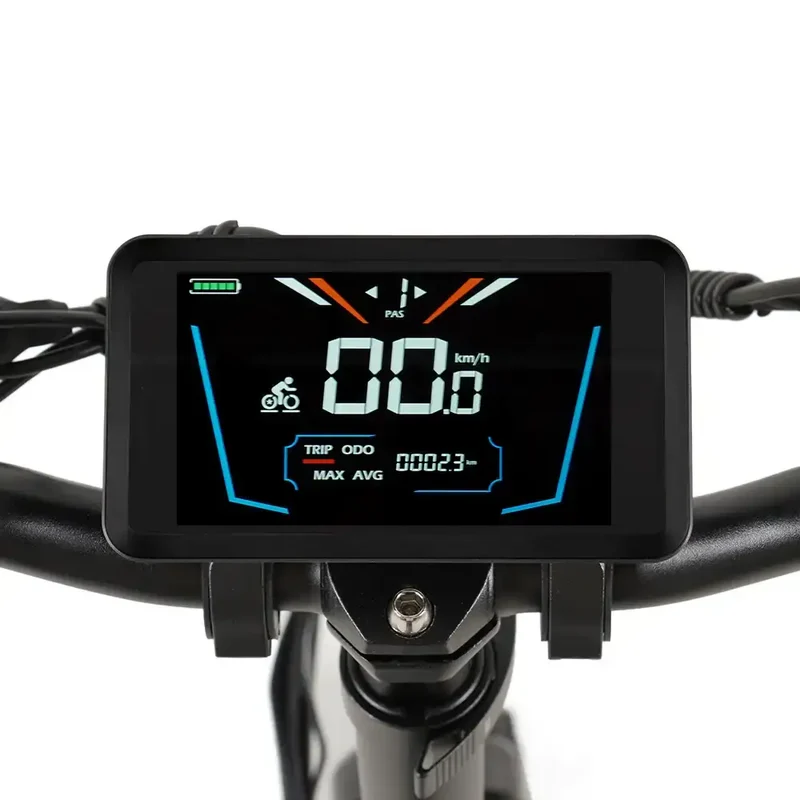

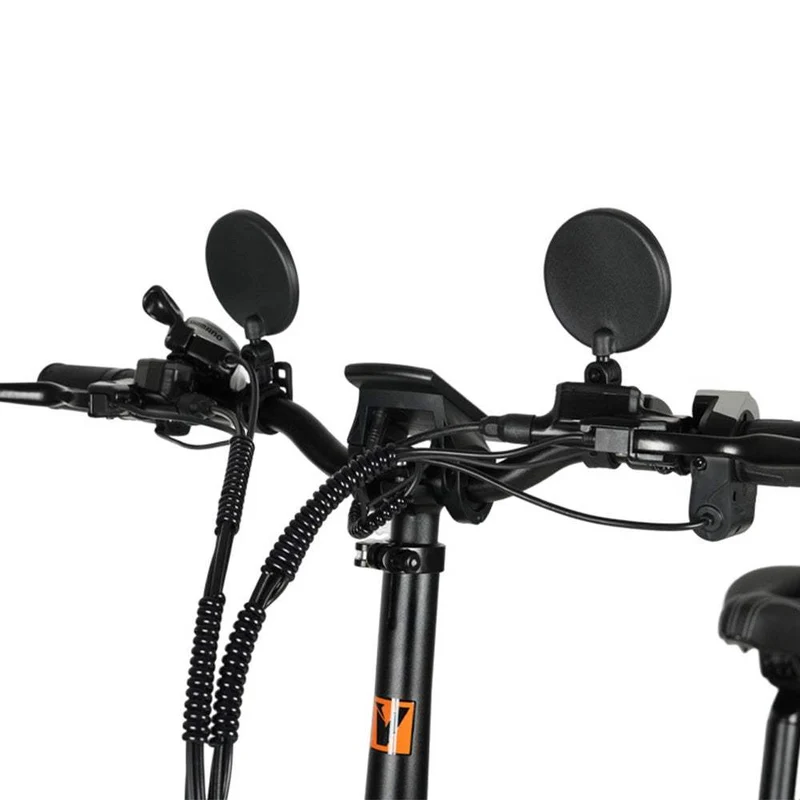

Meter Display	YOLIN 91F-E Colorful LCD Display
Frame Material	Aluminum Alloy
Color	Silver-gray
Battery	20Ah (960Wh) LG Cell Units
Battery Voltage	48V
Charger Voltage	56.4V 4A
Charger Plug Type	European standard round plug
Charging Time	About 5H
Motor Wattage	Nominal - 250W Peak - 1500w (750w*2)
Torque	Single-motor Mode: 60N.M Dual-motor Mode: 85N.M
Speed Level	5 levels
Mechanical Shift	7-speed gears
Riding Modes	1. Electric-only mode 2. Cycling mode (without electricity) 3. Pedal-assist mode
Tire	20*4.0
Brake	Hydraulic disc brakes
Shock Absorber	Front fork suspension & tail mechanical suspension
Gradeability	35°- 40°
Top Speed	25km/h (can be unlocked)
Mileage of Pure Electric	60-80KM
Mileage of Assistance	80-120KM
Maximum Load	150kg
Rear Seat Bracket Maximum Load	50kg
Suitable Height	160 - 190cm
Headlight	Big beam light
Tail Light	Yes
Turn Signal Light	Yes
Mudguard	Front & rear fender
Reflectors	Front & rear wheel
Waterproof Level	IP65（life waterproof, can be used in the rain）
Net Weight of the Bike	36.7kg
Weight of Battery	4.5kg
Gross Weight	43.5kg

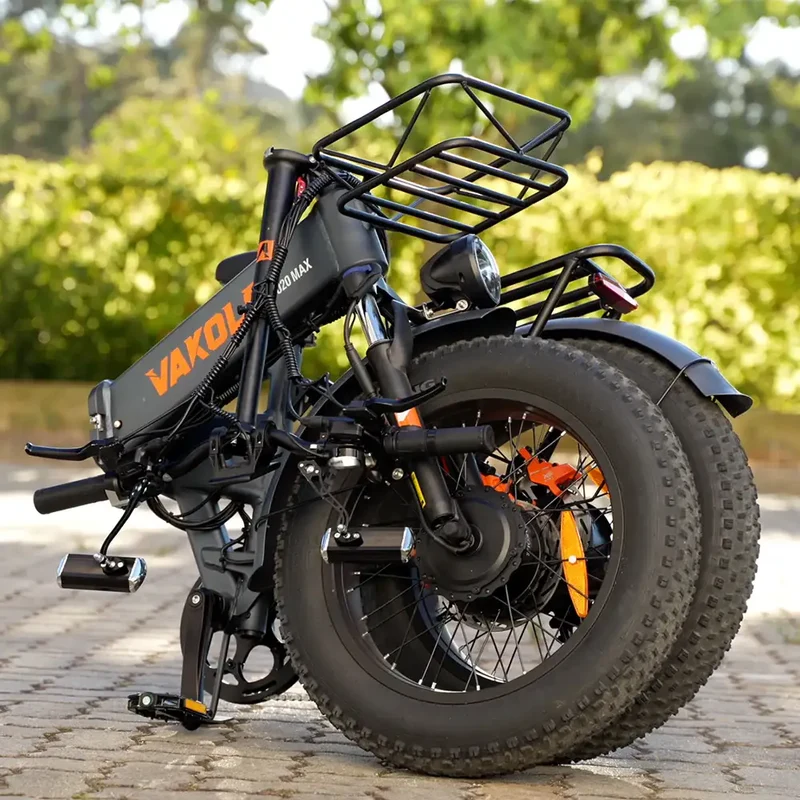

Packing Mode	Folding
Package Size	98×44×83cm
Accessories Pack	1*Hanging bag 1*Turn signal light (installed under the seat ) 1*Charger

【Unlock Speed Limit Note】

The bicycles currently on sale have a speed limit. If you want to lift the speed limit, please follow the steps below:

1. Press and hold the “+” and “-” buttons at the same time to enter the SETTING menu.
2. Go to the P01 setting page.
3. Press and hold the “+” button until 51KM/H appears.
4. This means the speed setting has been adjusted.
5. Press the “i” button to save your changes.
6. Press the “BACK” button to exit the menu.

Your VAKOLE CO20 MAX speed setting is now updated.

⚠️ Note: Please follow local traffic regulations and ride safely.
