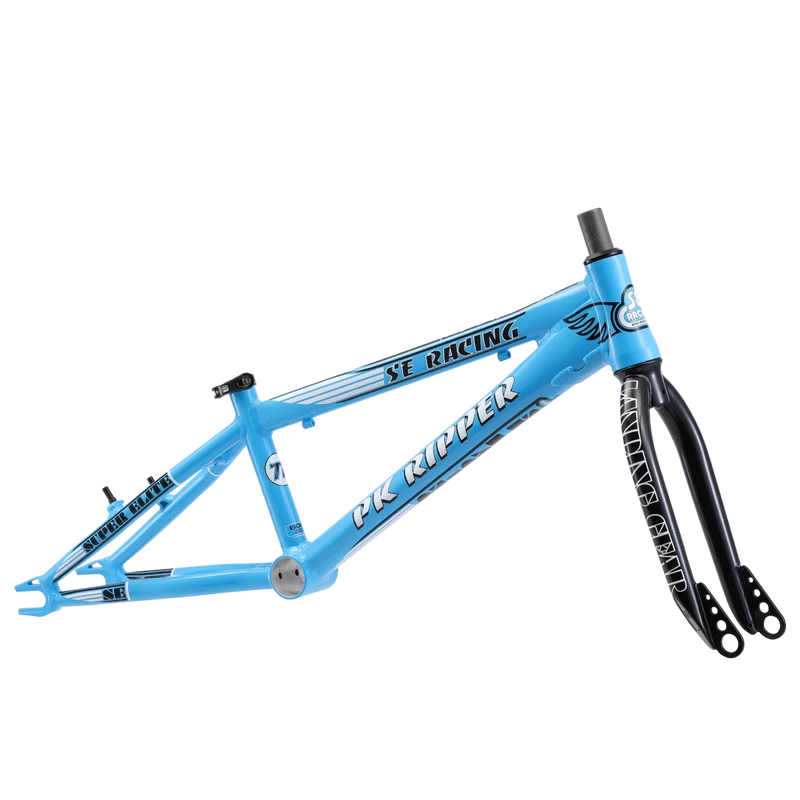

SE Bikes PK Ripper Super Elite Race Frameset

By far, the most advanced PK Ripper frame of all time. The PK Ripper Super Elite frame with a 20.5" top tube comes equipped with features such as a tapered headtube, PF30 bottom bracket, and 20mm dropouts. Match it up with high-end race parts of your choice and you will surely smoke the competition. Includes Cr-Mo Landing Gear forks with tapered legs and closed-end dropouts, as well as three different sets of chain tensioner plates to accept hubs with 20mm, 15mm or 3/8” axles, Promax QR-1 quick release seat clamp and a sealed bearing integrated headset.

###section###

Product Specs

1. MATERIAL: 6066 aluminum
2. HEAD TUBE ANGLE: 74°
3. SEAT TUBE ANGLE: 71°
4. CHAIN STAY LENGTH: 14.3"
5. BB HEIGHT: 11.5"
6. WHEEL SIZE: 20"
7. STANDOVER HEIGHT: TBC
8. DROPOUT SIZE: 20mm
9. HEADSET TYPE: Integrated
10. BB TYPE: PF30
11. BRAKE MOUNTS: V-Brake
12. GYRO TABS: NA
13. WEIGHT: Frame 3.4 lbs / 1.54 kgs. Fork 2.5 lbs / 1.13 kgs

###section###

Product Highlights

• BMX Racing Specific Geometry
• Race Specific Frame
• Lightweight and strong aluminium construction
• Tapered tubing
• Integrated seat post clamp
