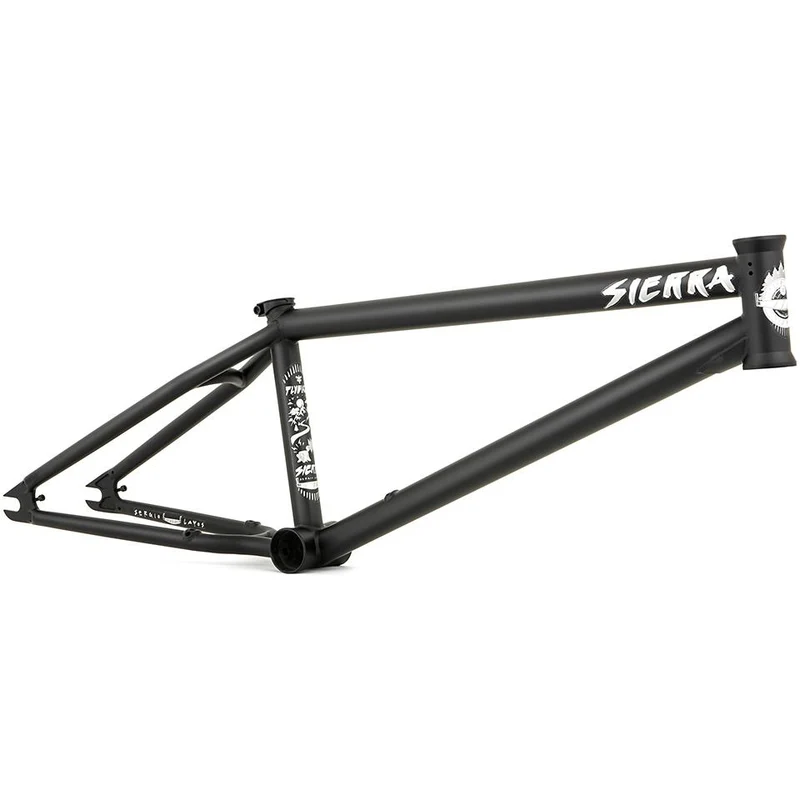

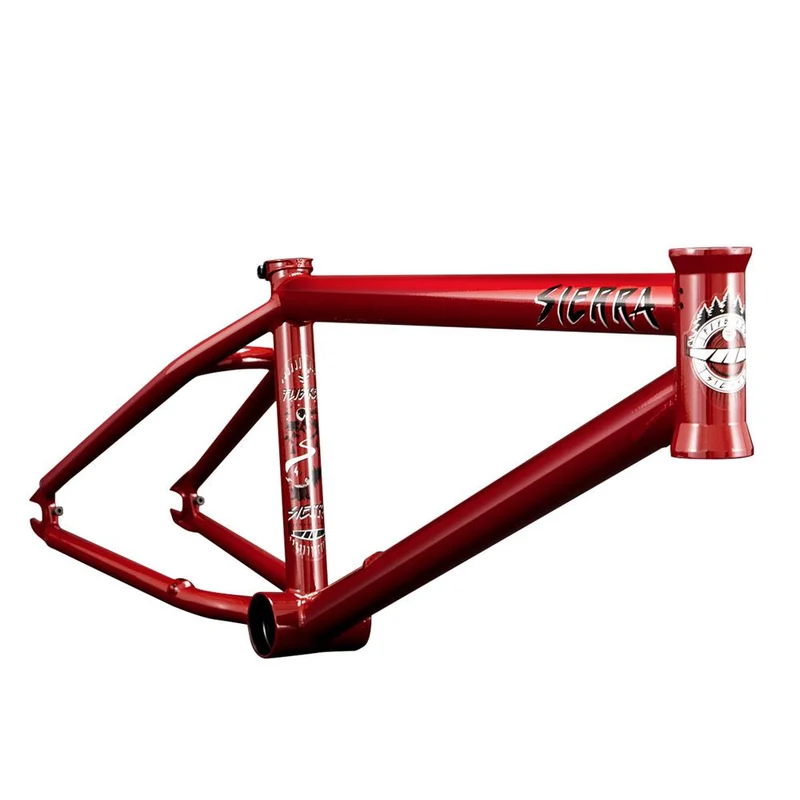

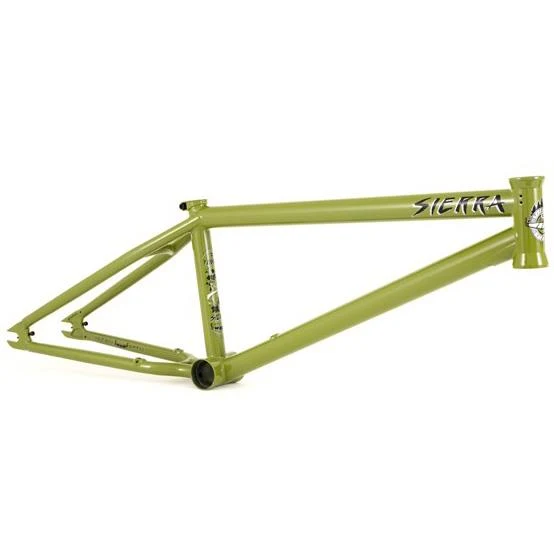

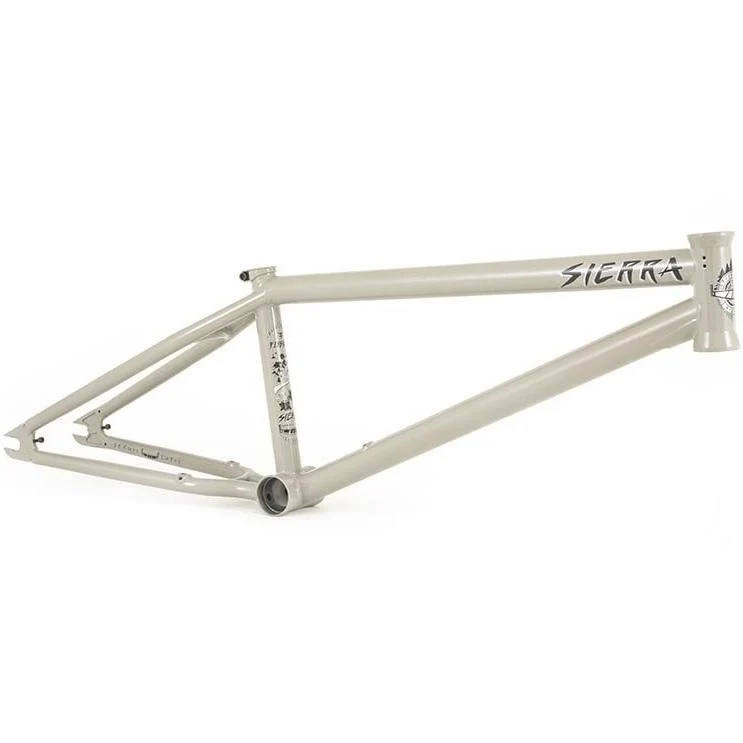

Fly Sierra 3 Frame

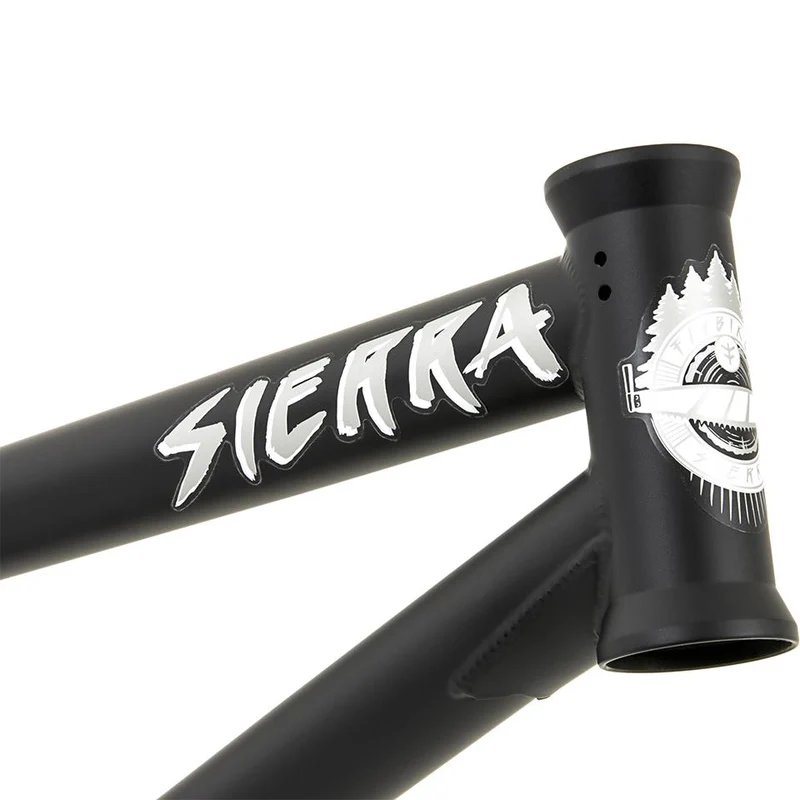

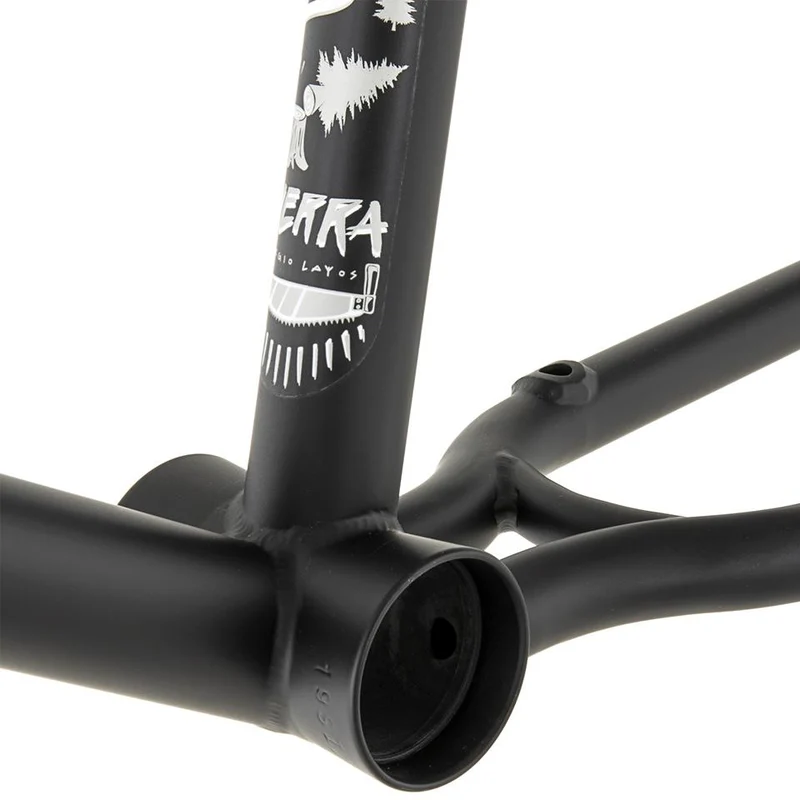

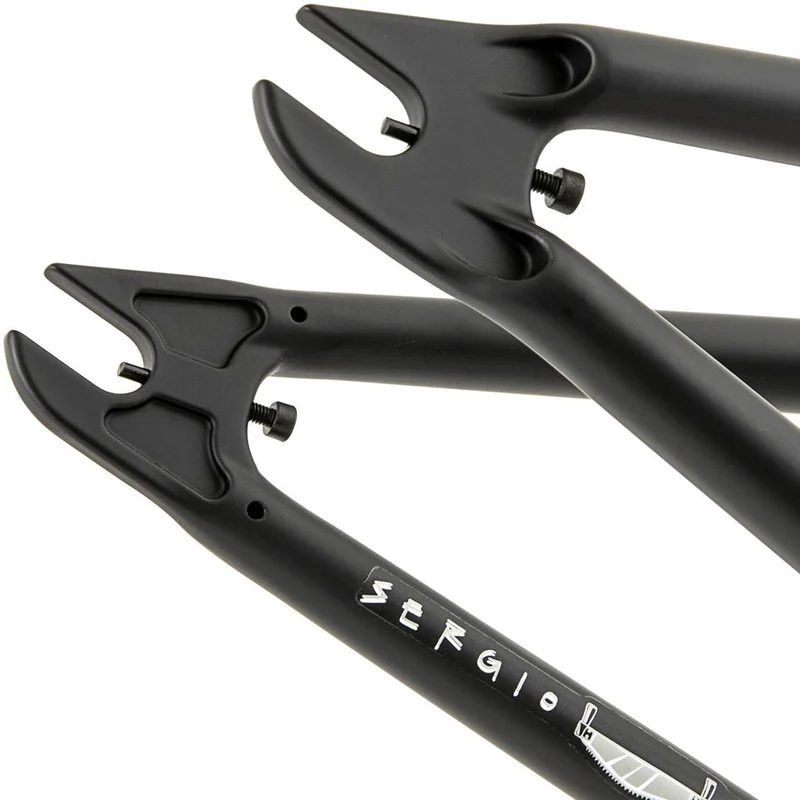

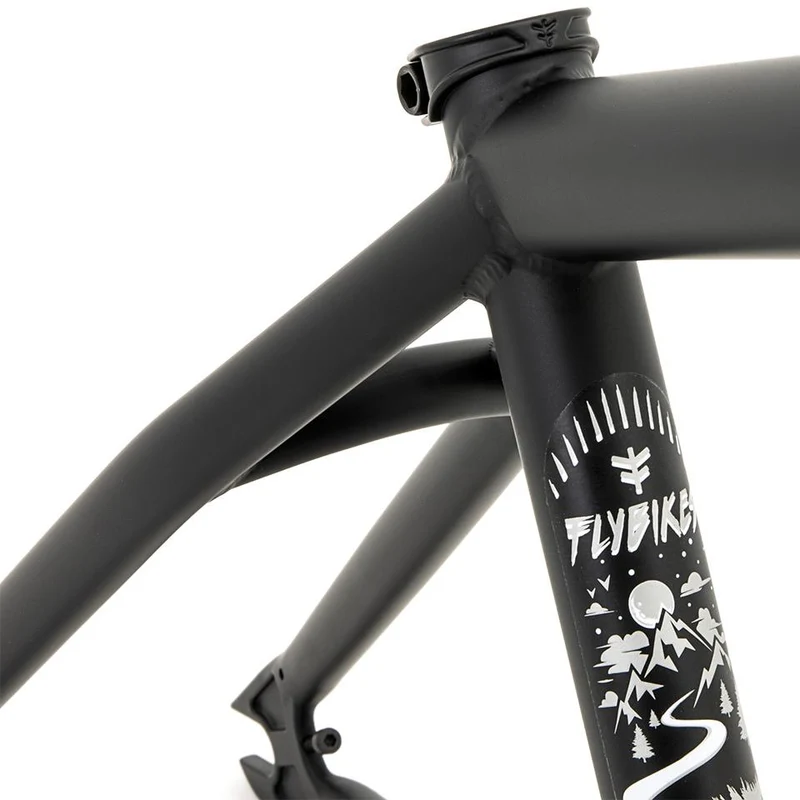

After another amazing year for Sergio Layos, Fly have only made a few small changes to make his signature frame even better. Sergio has decided to make the move back to a 75° head tube angle, The frame features internal and external gussets, multi-butted and tapered tubing, an Investment Cast seat post clamp with the Horizontal Cut System, removable EBS style brake mounts and Investment Cast Dropouts with integrated chain tensioners!

###section###

Product Specs

1. MATERIAL: 4130 Chromoly
2. HEAD TUBE ANGLE: 75°
3. SEAT TUBE ANGLE: 71°
4. CHAIN STAY LENGTH: 13.6"
5. BB HEIGHT: 11.5"
6. WHEEL SIZE: 20"
7. STANDOVER HEIGHT: 8.75"
8. DROPOUT SIZE: 14mm
9. HEADSET TYPE: Integrated
10. BB TYPE: Mid
11. BRAKE MOUNTS: Removable
12. GYRO TABS: Drilled
13. WEIGHT: 5lbs

###section###

Product Highlights

• Neutral Geometry for responsiveness and stability
• Great all round frame for all types of riding
• High-quality Chromoly construction
• Gusseted tubing for added strength
• Built in chain tensioners
