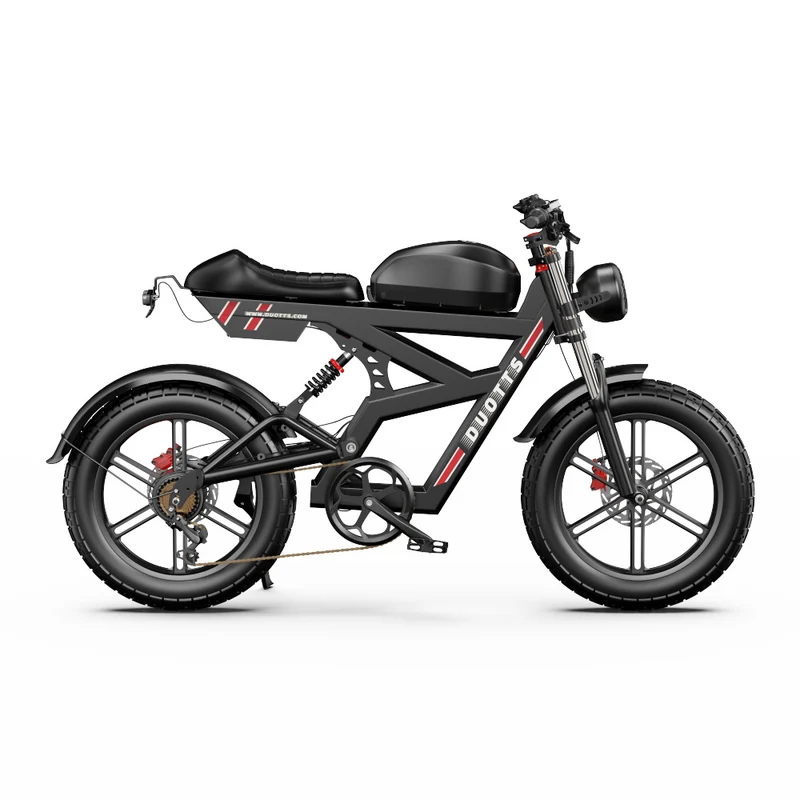

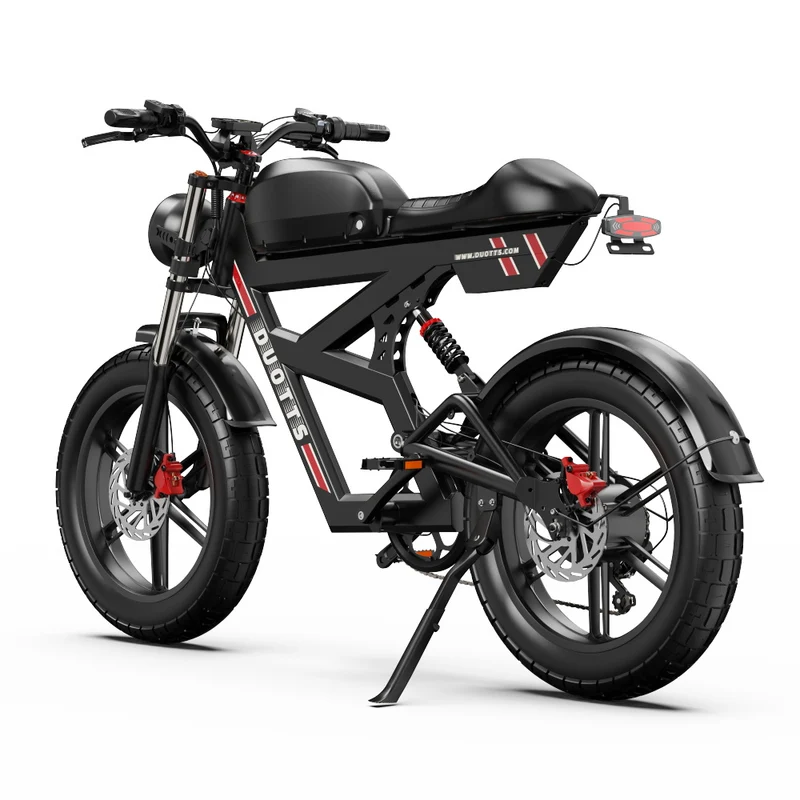

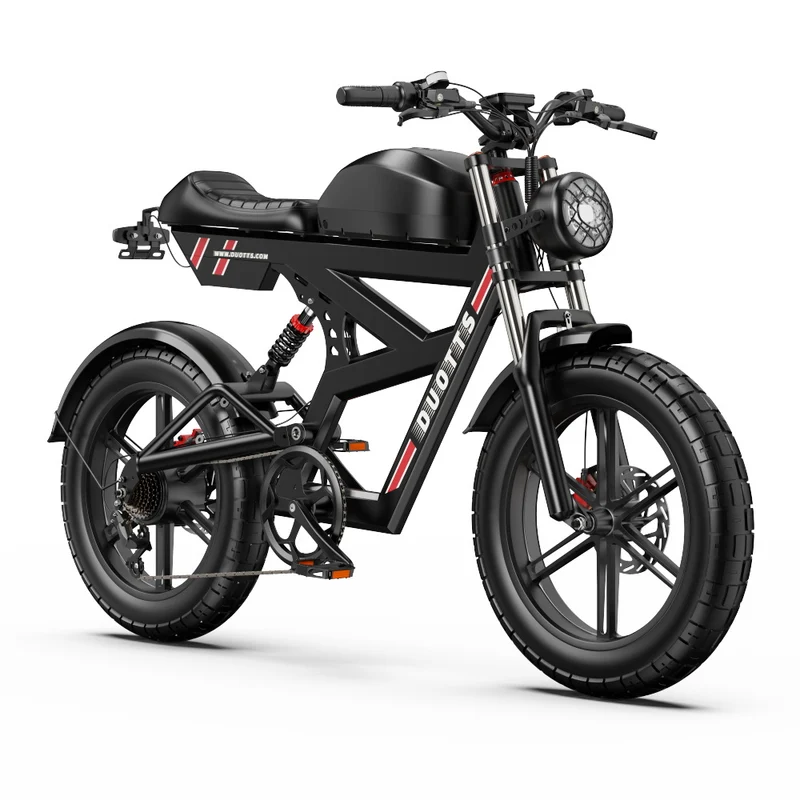

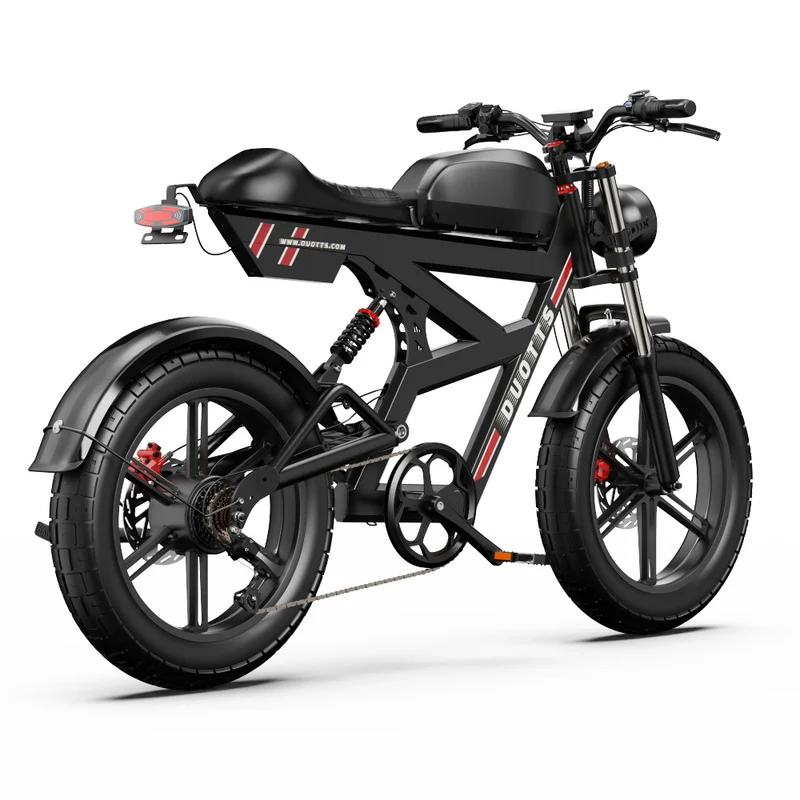

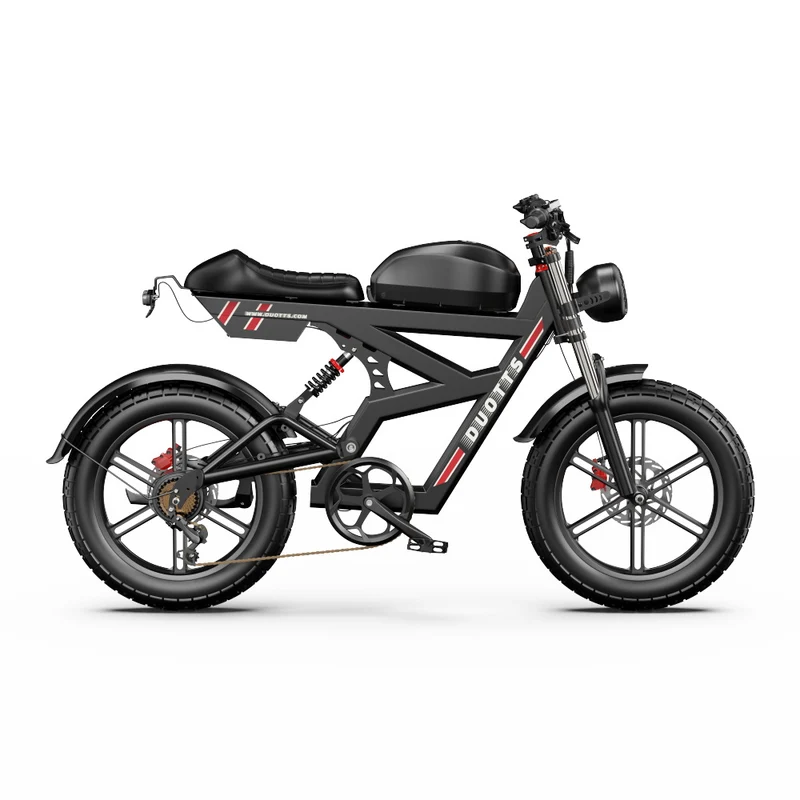

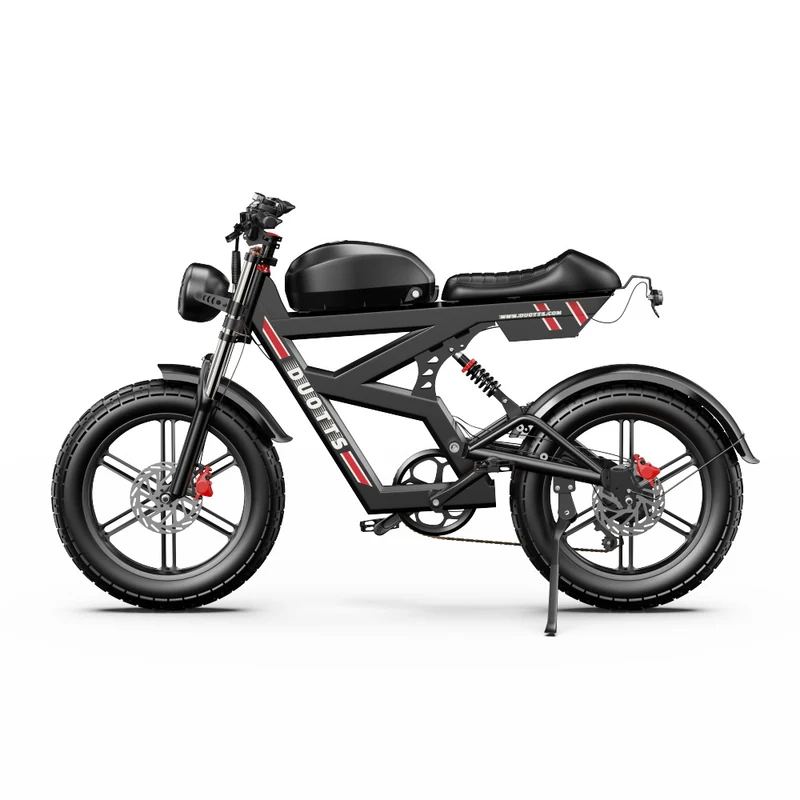

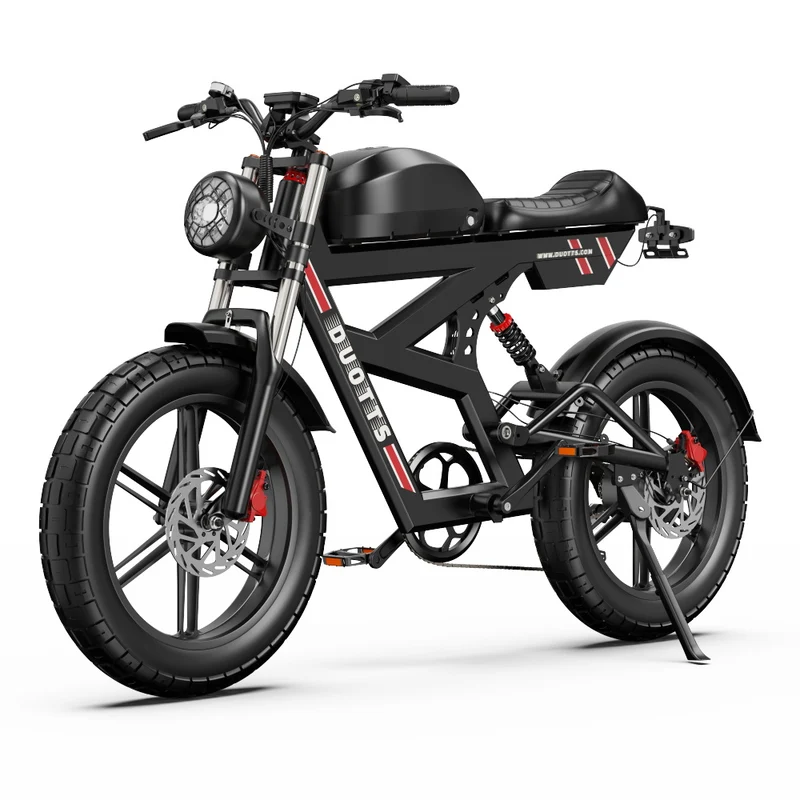

DUOTTS F20 20" Fat Bike 1404Wh E-Mountain Bike

Main Features

52V/27AH large capacity battery

The F20's 52V/27AH battery provides a range of approximately 60-70 kilometers in pure electric mode and approximately 120-140 kilometers in assist mode, which can eliminate your range anxiety.

52V 250W motor

The 52V 250W (peak power: 750w) motor can output strong power, long driving range and wide applicability, which makes it your ideal choice.

Shimano 7 speed

DUOTTS F20 is equipped with Shimano's well-known 7-speed mechanical transmission, allowing you to switch speeds at will.

20×4" fat tire

The F20 is equipped with 20×4" fat tires, which can achieve good shock absorption effect, allowing you to easily ride over uneven terrain while also ensuring the stability of your vehicle.

Specifications

Brand	DUOTTS
Model	F20
Battery Capacity	52V 27AH
Motor Power	Nominal: 250 W Peak: 750 W
Torque	80NM

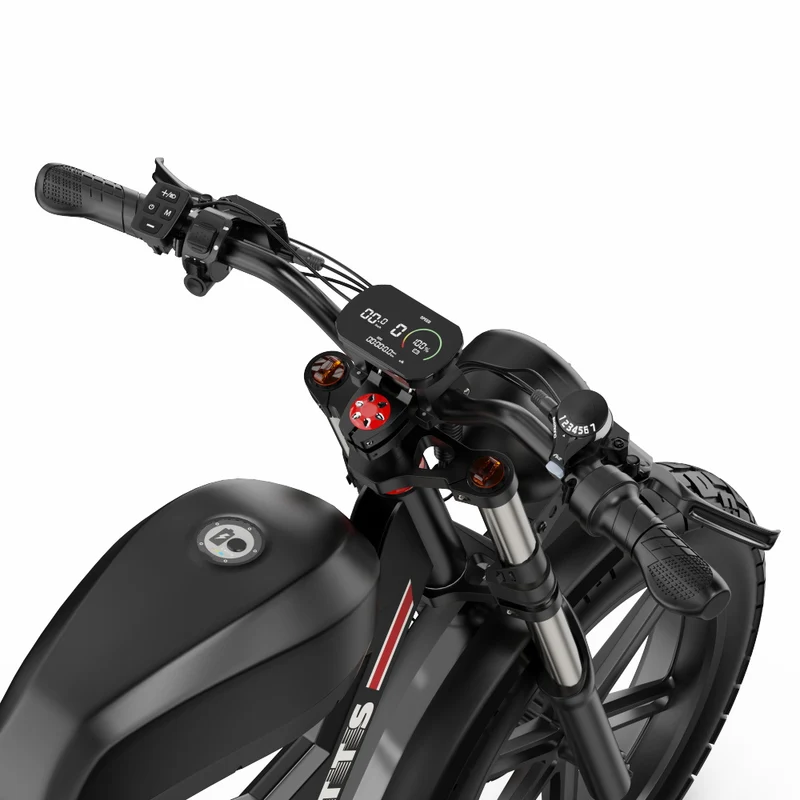

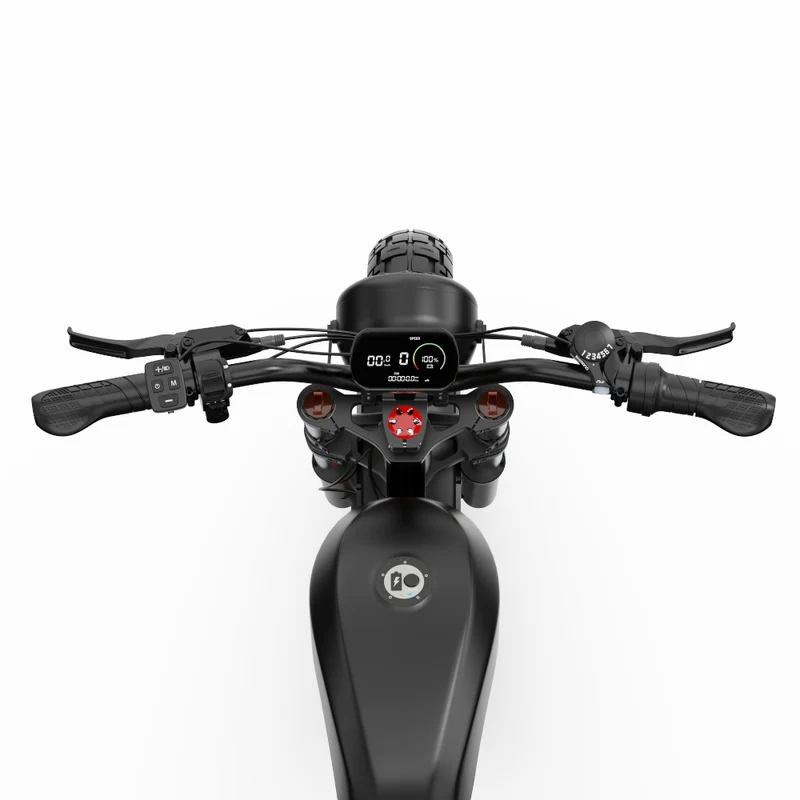

Meter Display	LCD color display
Max. Speed	25km/h (can be unlocked)
Sensor	Speed sensor
Riding Mode	Pure Electric
	Pedal Assistant (PAS)
	Pedal
Max range for pure power	60-70Km
Max range for assisted mode	120-140Km
Frame Material	Aluminum frame
Max climbing grade	30°
Wheel & Tire	20 x 4 inches fat tire
Braking System	Left and right power off brake, front and rear disc oil brake, disc diameter 180mm*2.8mm
Gears/Variable Speed	Shimano 7-speed
Suspension	All aluminum shock-proof front fork
Input voltage	110V-240V
Charger	58.8V 2A
Charging Time	12-14hours
Max load	150kg
Handlebar Height	102cm
Saddle height	83cm
Suitable Height	170-200cm
Lights	Front & Rear Lights, rear light has steering
Mudguard	Front & Rear
Waterproof	IPX4
Battery Weight	7.66kg
Net Weight	42kg
Gross Weight	44kg
Full Size	176*71*102cm
Package Size	144*28*82cm
Package Includes	1 x DUOTTS F20 E-bike
	1 x Installation tool
	1 x Battery Charger
	1 x Headlight
	1 x A pair of pedals
	1 x User Manual
