Marca: DUOTTS

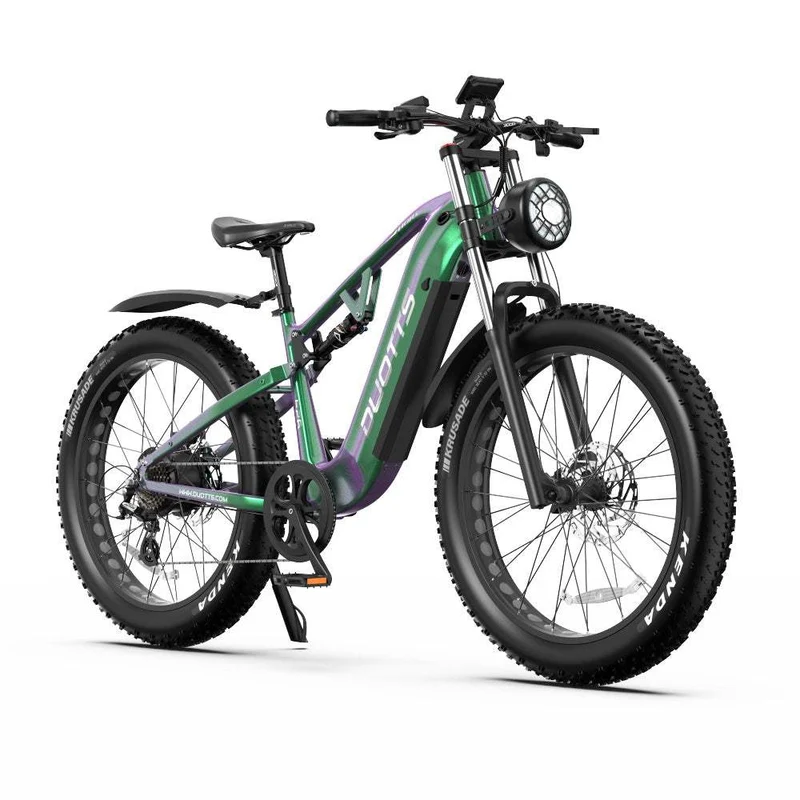

DUOTTS E26 26" Bafang Motor Fat Bike Full Suspension E-MTB 960Wh Support APP
Descripción
Main Features
48V 250W BAFANG Motor ( Top speed: 25km/h)
250W Bafang brushless motor(peak power 750w) with 80N.M maximum torque combined with intelligent controller produce, it can easily assist you to travel at 25km/h (Electric Mode).
48V 20Ah large capacity 21700 lithium battery （Samsung Cell Units）
The 48V 20Ah (960Wh) Samsung 21700 lithium battery pack is integrated into the frame to provide dual protection against water and dust, long battery life, safety, and reliability, with strong and stable output. The pedal-assisted mode ranges 120km, providing plenty of power output for a comfortable ride.
Torque Sensor
High sensitivity and accuracy in sensing capable of detecting static and dynamic torque and ensuring stable driving performance of electric bicycles with zero start during cycling.
Hydraulic Disc Braking System
The E26 is equipped with high-performance power-cut brake levers, paired with TEETRO Yanhao hydraulic brakes featuring four pistons, ensuring a quick response in emergency situations. Its 180mm brake discs offer greater stopping power and heat dissipation, delivering stable and precise braking performance, especially at high speeds or on challenging terrain. This significantly enhances safety and control during rides.
Specifications
| Brand | DUOTTS |
| Model | E26 |
| Battery Capacity | 48v 20Ah (960Wh) Samsung Cell Units |
| Motor Power | 250W Bafang Motor （peak power:750w） |
| Torque | 80N.m |

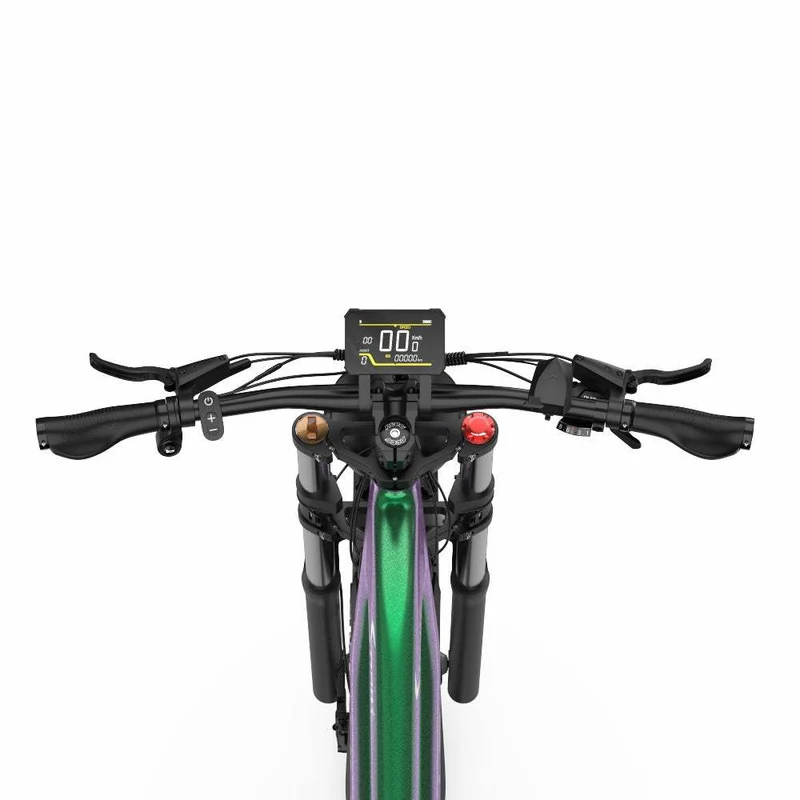

| Meter Display | LCD Display |
| Max. Speed | 25km/h (can be unlocked) |
| Riding Mode | Pure Electric |
| Pedal Assistant (PAS) | |
| Pedal | |
| Max range for pure power | 40-60 KM |
| Max range for assisted mode | 100-120 KM |
| Frame Material | Full Aluminum Alloy |
| Max climbing grade | 30° |
| Wheel & Tire | 26 x 4.0" |
| Braking System | hydraulic disc brakes |
| Gears/Variable Speed | Shimano 8 speed |
| Suspension | Front and Rear Suspension |
| Charger | 54.6V 3A |
| Charging Time | about 6-8 hours |
| Max load | 150KG |
| Handlebar Height | 113CM |
| Saddle height | 84-102CM |
| Suitable Height | 170-200CM |
| Lights | LED Front Headlight |
| Waterproof | IPX4 |
| Battery Weight | 4KG |
| Net Weight | 37KG |
| Gross Weight | 48.5KG |
| Full Size | 210*71*113CM |
| Package Size | 160*320*88CM |
| Package Includes | 1 x DUOTTS E26 E-bike |
| 1 x Installation tool | |
| 1 x Battery Charger | |
| 1 x User Manual |
Download the English User Manual
