Marca: COSWHEEL

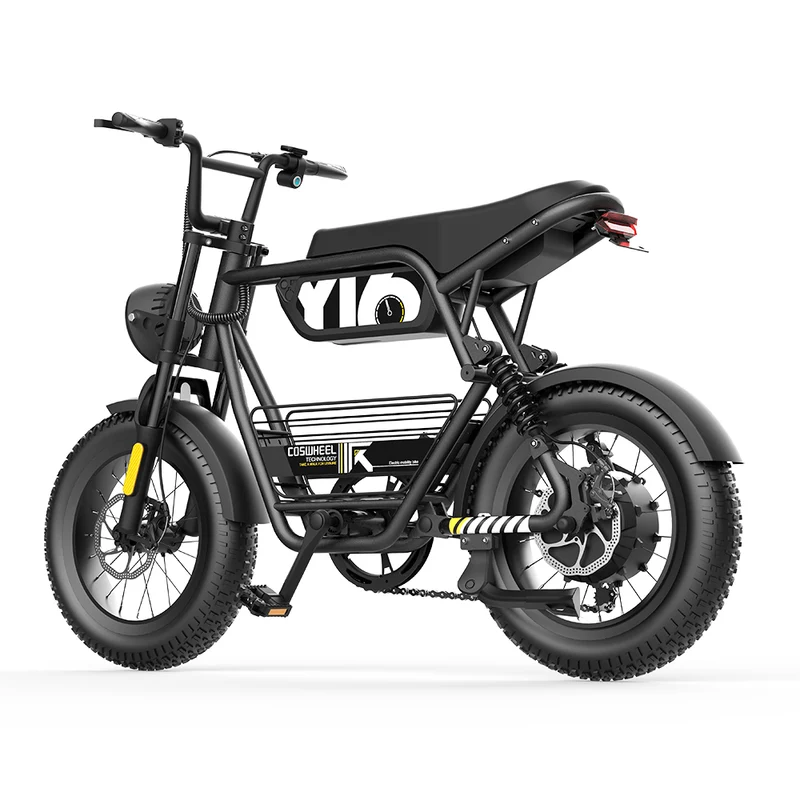

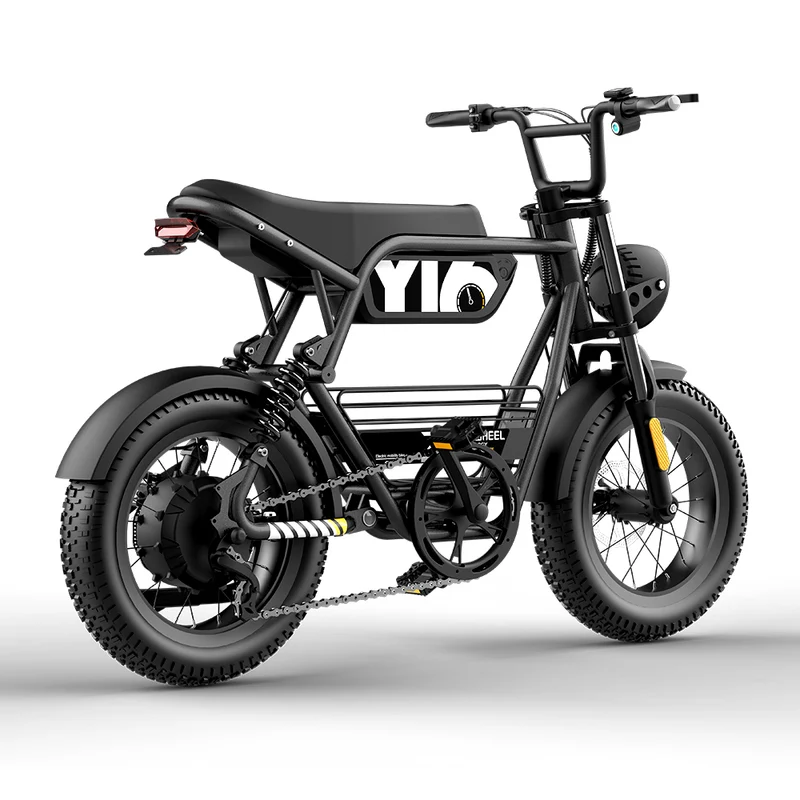

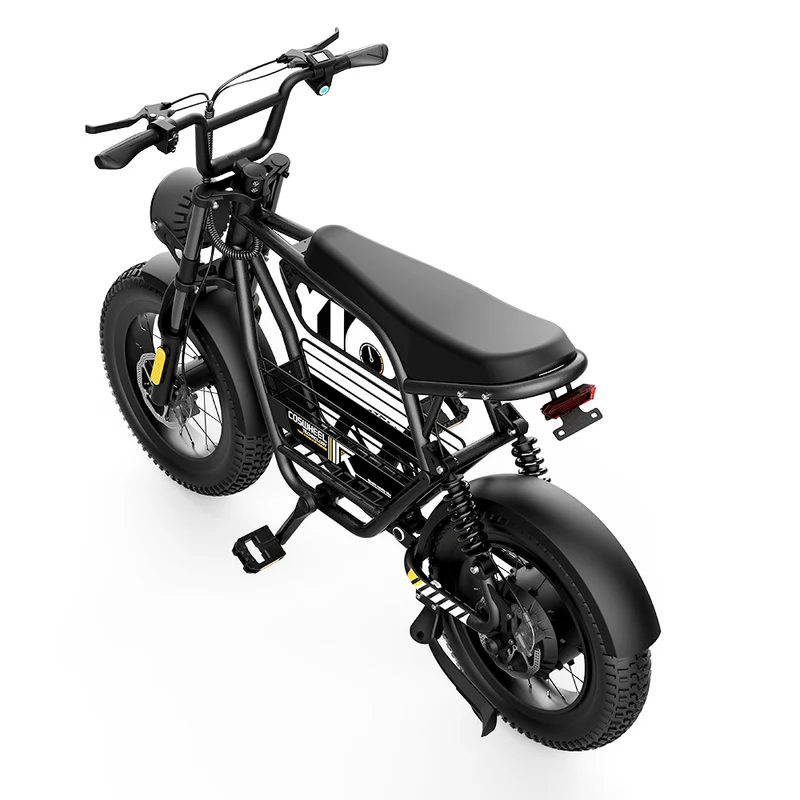

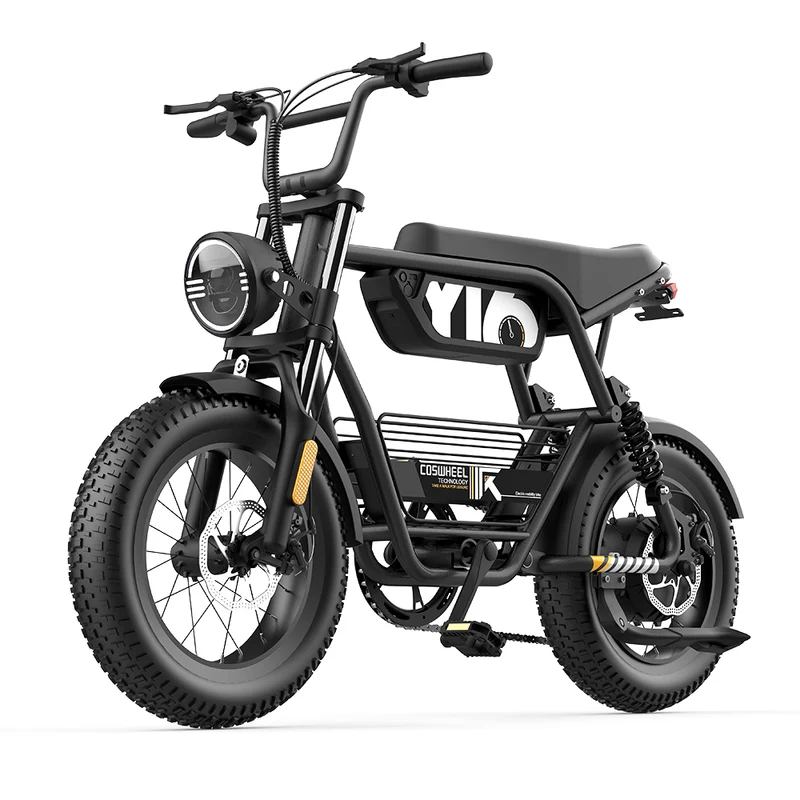

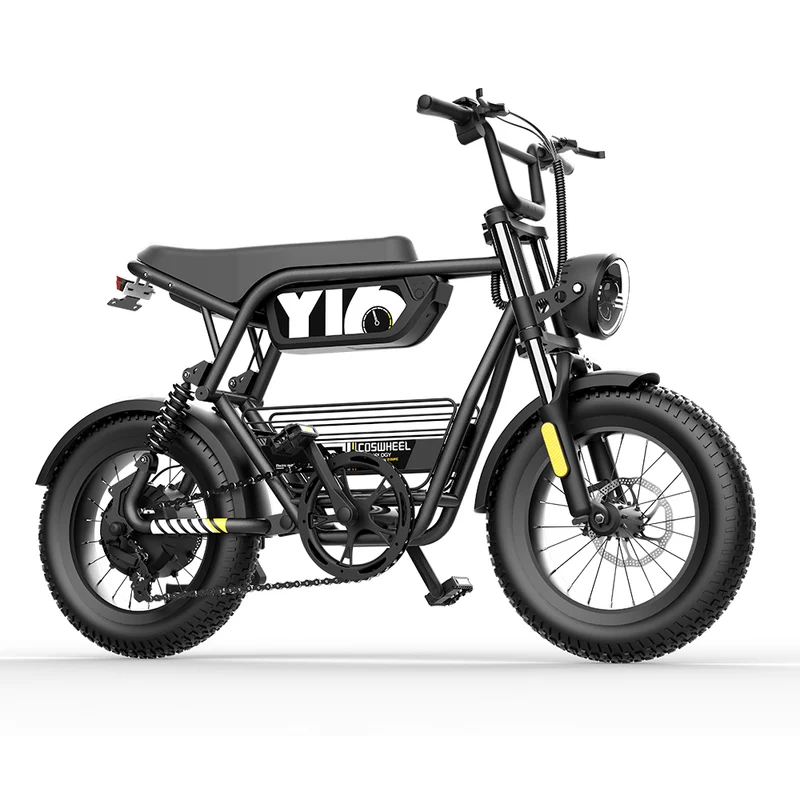

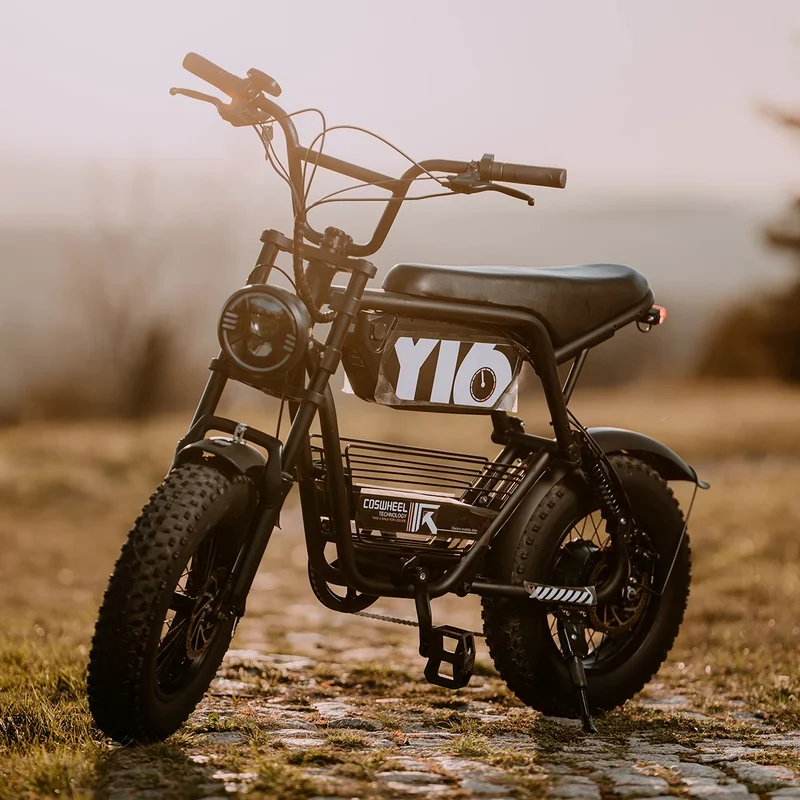

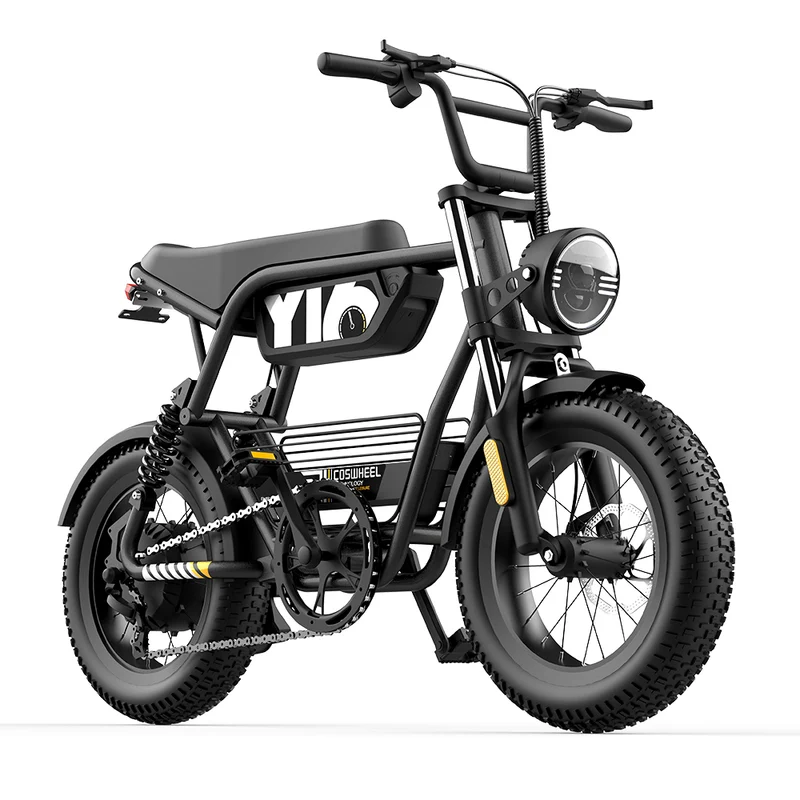

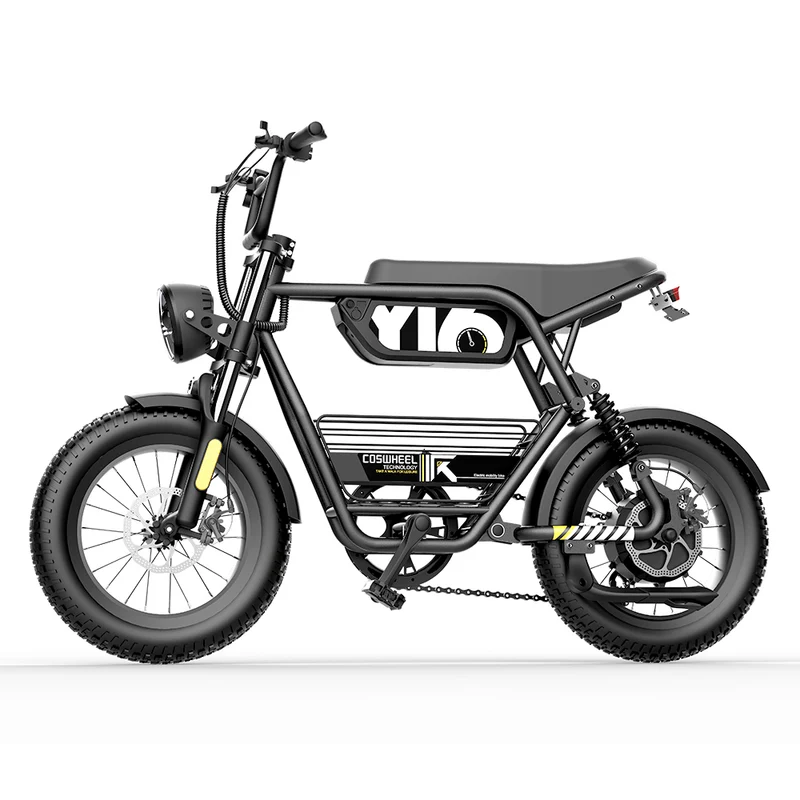

Coswheel Y16 16" Fat Bike Full Suspension E-Mountain Bike 720Wh EMTB
Descripción
Main Features

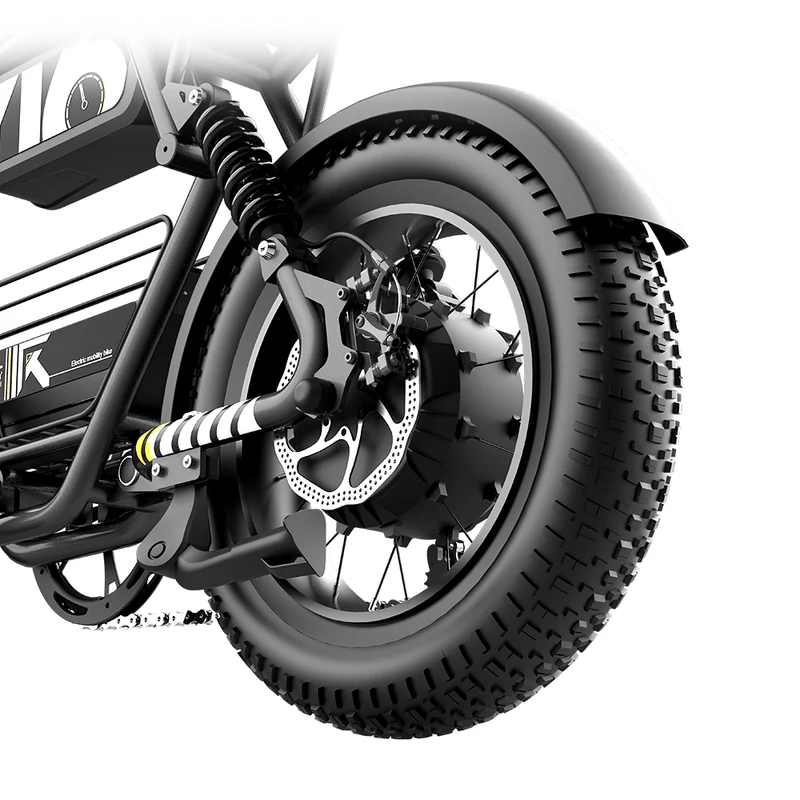

48V High-Power Rear Hub Motor Rated 750W
Equipped with a robust 48V brushless rear hub motor, rated at 750W with a peak power of 1000W. Boasting 50N.m of torque, it powers you smoothly and confidently across diverse terrain.
720Wh Battery Up to 84km Long Range
Powered by a high-capacity 720Wh battery for up to 84km on a single charge. Ride freely with reliable power for every journey.
Double Cover Chain System
Engineered with a dual-layer chain guard, this design helps keep the chain aligned and protected. Whether you’re commuting or riding on rough roads, you can enjoy smoother, more reliable performance.

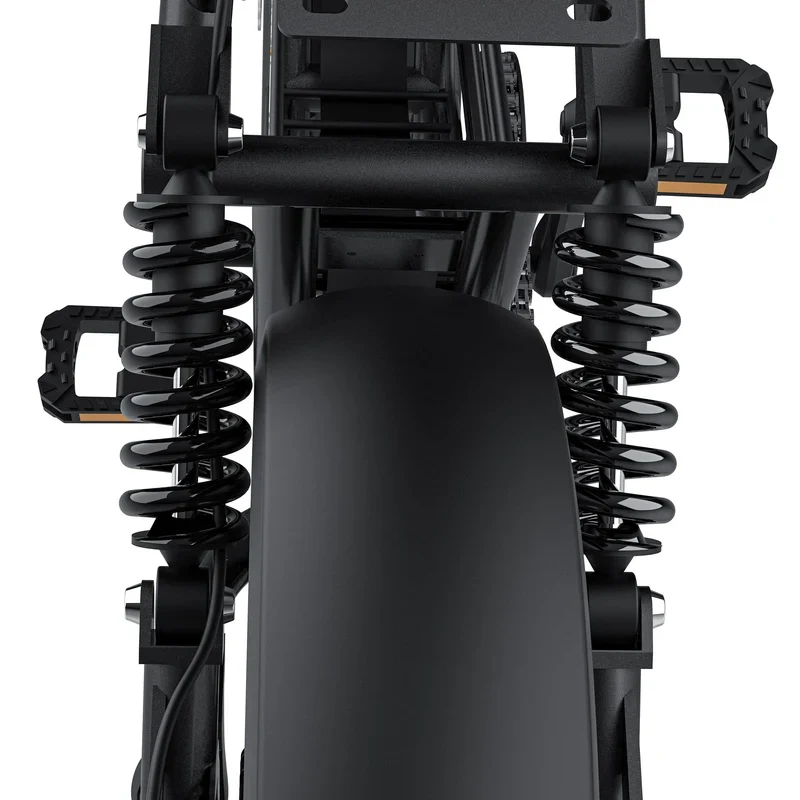

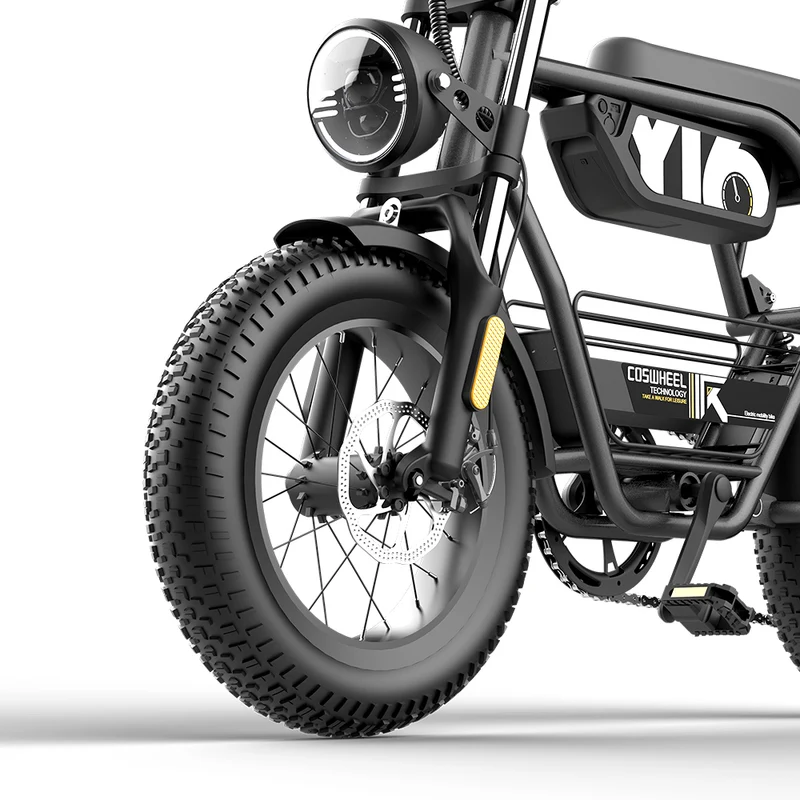

Full Suspension System
Our front suspension boasts 135mm center-to-center spacing, a black finish, and 80mm travel. Paired with adjustable twin inverted coil shocks, it delivers outstanding shock absorption for bumpy trails.

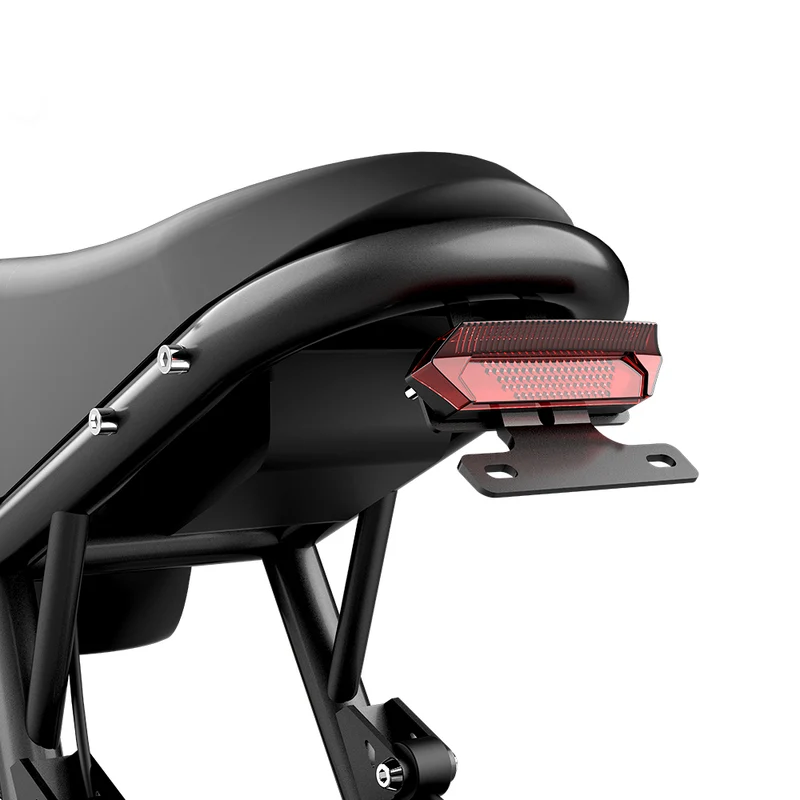

Features a brand-new silver-white waterproof anti-rust chain. Paired with dual turn signals and an integrated taillight, it lights up dark roads for safer night rides.
Specifications
| Brand | Coswheel |
| Model | Y16 |
| Frame | Iron Frame |
| Battery Capacity | 48V 15Ah Battery (Lithium 18650 Cells) |
| Motor Power | Peak 1000W (Rated 750W) |
| Torque | 50N.m |
| Top Speed | Class 2/3, 45Km/h |
| Range | 48km in Class-2 throttle-only mode (pure electricity); 84km in Class-1 PAS (pedal assist) |
| Front Suspension | Double-Crown Front Fork, Total Length 630mm, Gap 135mm, 80mm Travel |
| Rear Suspension | Dual Shock Absorbers, Hole Spacing 185mm, Poundage Wire Diameter 5mm |
| Brakes | Double Disc Brakes, Equipped with 160mm Stainless Brake Disc |
| Tires | ChaoYang All Terrain Tire 16" × 4.0" H5176 30TPI |
| Throttle | Grip Twist Throttle |
| Charger | 48V3A Charger |
| Charging Time | 3.5-8.0h |

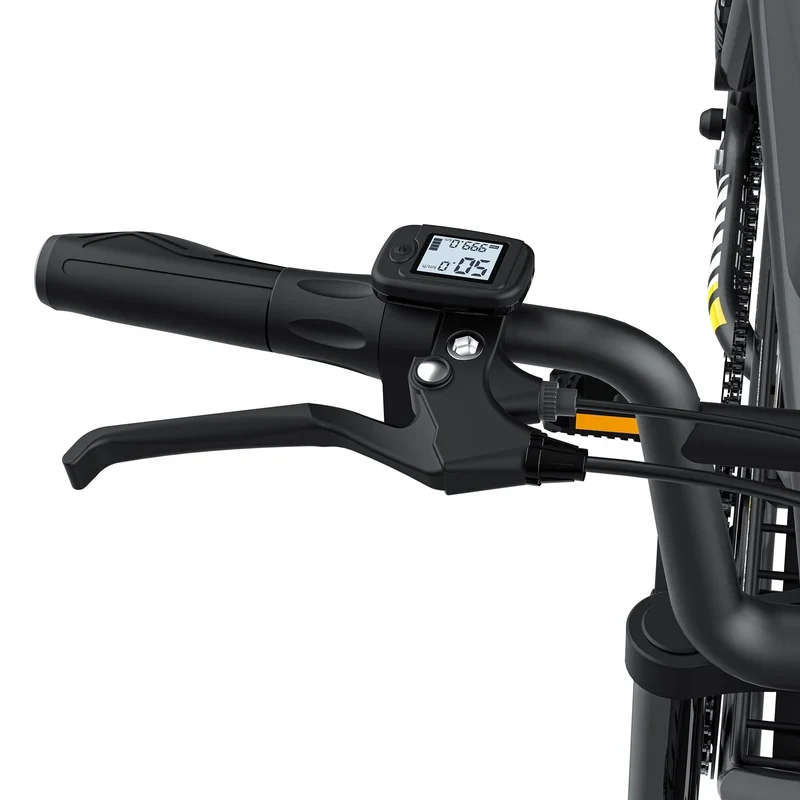

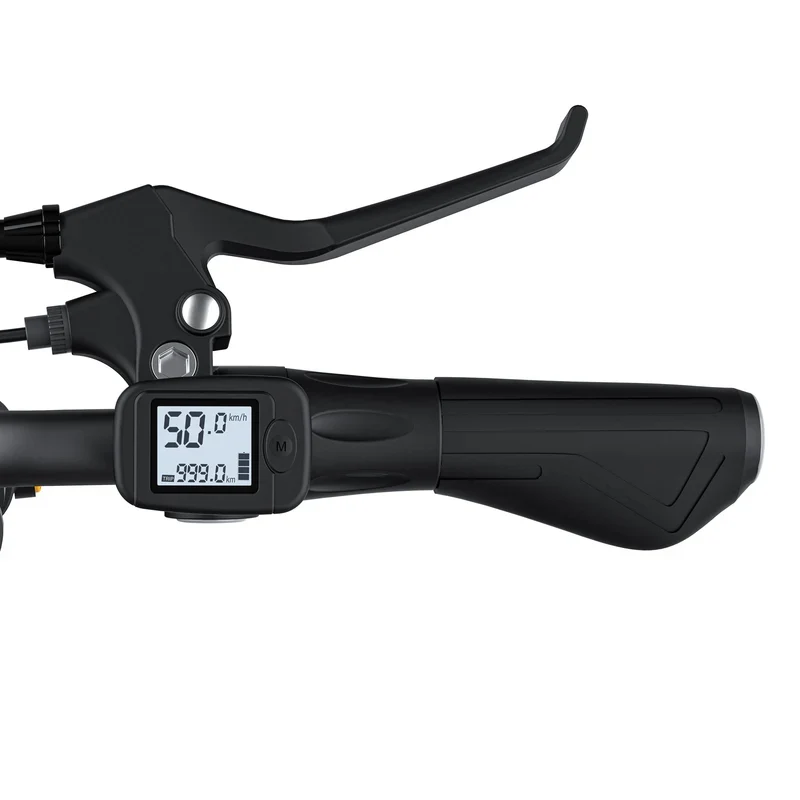

| Display | Easy Read LCD Display |
| Controller | 48V 22A |

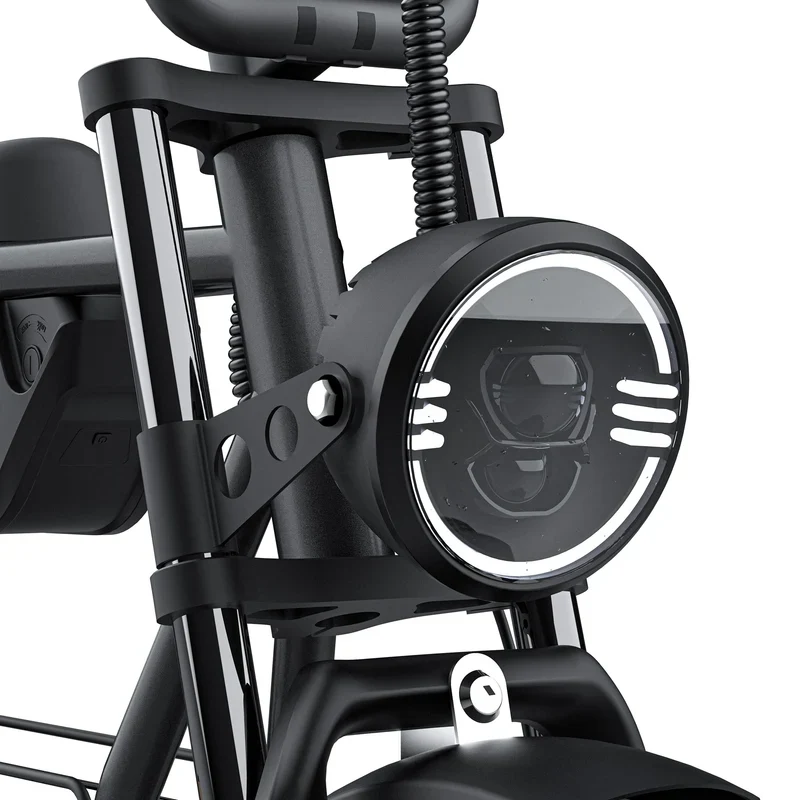

| Front Light | Classic Angel Eye Headlight, 120 LUX |
| Rear Light | LED |
| Pedal Assist | 1 Levels |
| Sensors | Speed Sensor |
| Waterproof Level | IP54 |
| Pedal | Black |
| Crank | 46T Double Cover*Fish Shape |
| Rear Derailleur | Single Speed |
| Chain | Anti-rust, 116 Mesh |
| Handlebars | Black, 25.4*L:640mm*H:180mm, 17° |
| Suitable Height | 150cm ~ 180cm |
| Seat Height | 75cm |
| Bike Height | 100cm |
| Wheelbase | 98cm |
| Handlebar Width | 65cm |
| Bike Weight | ≥44kg (with Battery) |
| Maximum Load | 150kg |
| Safe Load | 120kg |
| Overall Size | 153*65*100cm |
| Package Size | 142*32*82cm |
| Package Includes |
1 *Y16 Electric Bike Tool Kit Pedal Multimeter |
