Marca: BSD

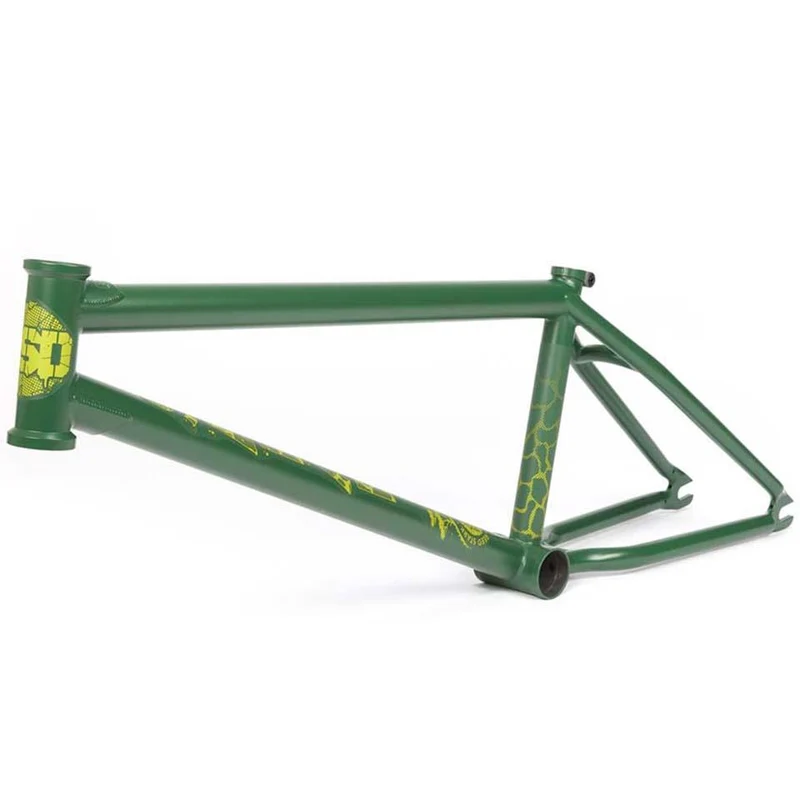

BSD Safari V2 Frame
Descripción
Reed Stark signature Safari frame from BSD. The Safari frame is a tall frame with a big standover and because of this it also has a taller headtube to keep the frame angles looking nice. The taller headtube distributes stress at the front of the frame over a larger area and also means you can run your stem and forks with no headset spacers for a cleaner look up front.
On a frame the highest concentration of stress is at the junctions between the headtube/toptube and headtube/downtube. To handle the pressures of modern riding, the required strength is achieved by beefing this area up using a combination of butted tubing and external gussets, making it built for urban adventure wherever your street safari takes you…
On a frame the highest concentration of stress is at the junctions between the headtube/toptube and headtube/downtube. To handle the pressures of modern riding, the required strength is achieved by beefing this area up using a combination of butted tubing and external gussets, making it built for urban adventure wherever your street safari takes you…
###section###
Product Specs- MATERIAL: 4130 Chromoly
- HEAD TUBE ANGLE: 75°
- SEAT TUBE ANGLE: 71°
- CHAIN STAY LENGTH: 13"
- BB HEIGHT: 11.75"
- WHEEL SIZE: 20"
- STANDOVER HEIGHT: 9.5"
- DROPOUT SIZE: 14mm
- HEADSET TYPE: Integrated
- BB TYPE: Mid
- BRAKE MOUNTS: Brakeless
- GYRO TABS: Brakeless
- WEIGHT: 5.3 lbs
###section###
Product Highlights- Neutral Geometry for responsiveness and stability
- Best suited to Street and Park riding
- High-quality Chromoly construction
- Gusseted tubing for added strength
- Strong and durable investment cast dropouts
